Dell XPS 15 L521X SSD Replacement

Geschrieben von: SHELDON SANTOS
  • Kommentare: 0
Dell XPS 15 L521X SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The SSD replacement only requires the removal of one phillips head screw. This is a very simple replacement, but it doesnt end after replacing the SSD. You may need to reinstall windows onto your Dell XPS.

  1. UWhjXBZmF3Gbfqay

    • Find and remove the two .3cm torx head screws using a T5 screwdriver.

    • Find and remove the six Phillips head .3cm screws using a Phillips #0 screwdriver.

  2. ycZXZcdWboSQCv2i

    • Unplug the battery indicator.

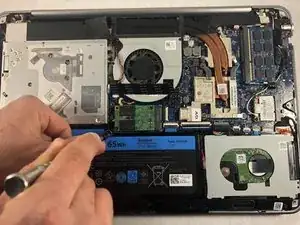

  3. YEQZOQIgNGBye4Qc

    • Find the single .3cm phillips head screw holding the SSD in place.

    • Remove the screw holding the SSD in place.

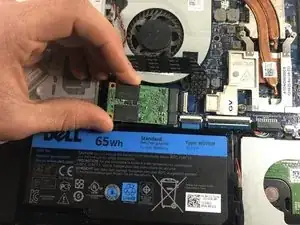

  4. IvlVEDXyJEWy6dRi

    • Gently pull the SSD out and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
