Dell XPS 15 L521X WiFi Card Replacement

Geschrieben von: SHELDON SANTOS
  • Kommentare: 0
Dell XPS 15 L521X WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

This guide will help you replace the Wifi card on your Dell XPS. The Wifi card is known to fail in the Dell XPS, so this easy repair should fix that. This guide will only require you to remove one screw, and pull the Wifi Card out of place.

  1. UWhjXBZmF3Gbfqay

    • Find and remove the two .3cm torx head screws using a T5 screwdriver.

    • Find and remove the six Phillips head .3cm screws using a Phillips #0 screwdriver.

  2. ycZXZcdWboSQCv2i

    • Unplug the battery indicator.

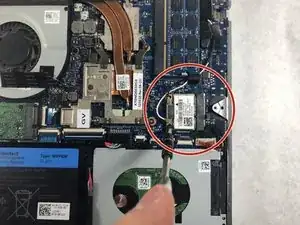

  3. khsFNhPgWI5SLOF1

    • Find the .3cm Phillips head screw holding the WiFi Card in place and remove it.

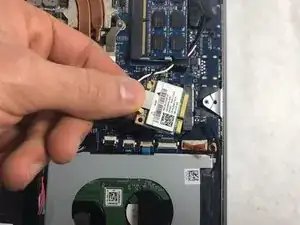

  4. rNGsspPZt3evMfKO

    • Gently pull the WiFi card out of its place.

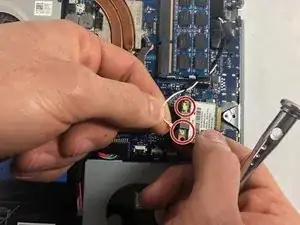

  5. RrvRqNnYsE51Zppe

    • Gently tug on the two wires connected to the Wifi card

Abschluss

To reassemble your device, follow these instructions in reverse order.
