Upgrade the RAM in your Dell XPS 18!

  1. dnICoDRCYJXB25GX
    dnICoDRCYJXB25GX
    pB2gbq3UhfW4KGtn
    • There are ten screws around the perimeter, circled in red in the second photo. Use a T8 Torx bit to remove these, and set them aside, we'll need them when we're done!

    • Place your XPS 18 face down on a flat surface. You may want to put a protective surface down such as a towel, microfiber cloth, etc., to make sure your screen doesn't get scratched. I'm using blank newsprint paper which also works great to give us a nice light background for the photos!

  2. ewgQncElsSOXDeUA
    ewgQncElsSOXDeUA
    LRRGkLldrrZcRkGJ
    • There are two feet/legs that fold out from the back. These are attached inside the unit, so fold them out before proceeding. You won't be able to remove the back panel if they're folded in.

    • There is a door on the right side that pushes in to allow access to the SD card port. This is a perfect place to insert your finger to get a good hold on the back panel. Use a finger to pull straight away from the unit to lift off the rear panel. It may stick a little but it will pull right off easily.

  3. 6hDtwEkgSg6hPTM6
    6hDtwEkgSg6hPTM6
    QCJtOsGTGX2bDbYH
    Df4AS2JmlYxYPE1L
    • The internals are revealed!

    • There is a narrow plastic strip that covers the haptic motor, some connectors, etc. Carefully peel it up and set it aside until you're ready to close up the unit.

  4. vvDnSXcPRG2FSSOA
    vvDnSXcPRG2FSSOA
    cLNd3HPEnciiJICt
    NhbsJxwusTm5K1tp
    • There are four Phillips screws here. Use the #0 phillips screwdriver to remove these.

    • Lift up the end of the drive opposite the connector slightly and pull the drive away from the connector. It will slide right out!

  5. T2UWRWdyXVnG3f3k
    T2UWRWdyXVnG3f3k
    PHE4O3hVa2RPOyyb
    • There are four phillips head screws, two on each side. Use the #0 driver to remove these and set them aside.

    • At this point if you're installing a SATA SSD, slip it in the caddy, screw it in, and go backwards through the steps to button everything back up.

  6. To access the mSATA and RAM slots we have to unclip the touch display cables and remove a plastic insulating sheet. It's easier than it sounds!
    • To access the mSATA and RAM slots we have to unclip the touch display cables and remove a plastic insulating sheet. It's easier than it sounds!

    • Use the pointy end of the spudger to flip the compression clips up to release the cables.

    It’s easier to disconnect the white touch cable, and then remove the two screws holding the board in place. Once the screws are removed the board then simply flips back, revealing the RAM slot beneath.

    Strephon Alkhalikoi -

  7. XUjTwAAB64uEsKVY
    XUjTwAAB64uEsKVY
    4PXpVPHbtkWQvutK

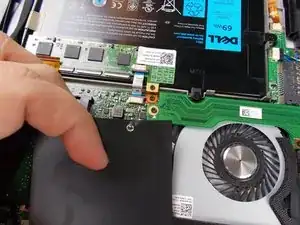

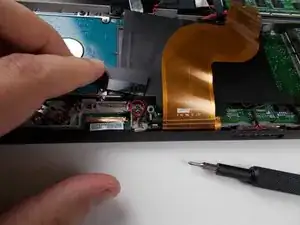

    • There are two screws that hold this plastic sheet down because it's also a grounded shield. Use the #0 screwdriver to unscrew the screws shown in these photos.

    Dell left a space in the plastic sheet for the RAM module. Removing the plastic sheet isn’t necessary.

    Strephon Alkhalikoi -

  8. 1X3NOBctsRvlBTAP
    1X3NOBctsRvlBTAP
    6WoZZBbTNliQdCCh

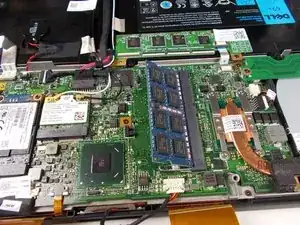

    • Insert the SODIMM as shown, it should slip right in fully.

    • Press down until it clips in securely.

  9. WnbvaByQEepUcZ6y
    WnbvaByQEepUcZ6y
    qnMKvEaswGLuxdT4
    • Screw the plastic shield back down.

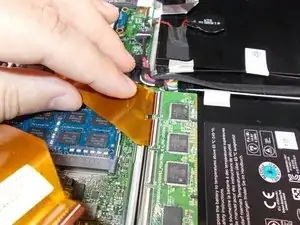

    • Slip the connector ends of the flat cables back into their slots and use the flat end of the spudger to flip the clips back down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
