Dell XPS 18 Touch Control Board Replacement

Geschrieben von: Austin Weir

Kommentare: 3

Dell XPS 18 Touch Control Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to replace the touch control board on your Dell XPS 18. Replacement for this part is required if you cannot seem to get the touchscreen to work.

Werkzeuge

Schritt 1

Turn the device on its screen.
Remove the ten 4mm screws using a T8 Torx screwdriver.

Schritt 2

Gently flip out support feet located near the bottom of device.

Schritt 3

Gently lift the back cover off the device. The back cover should come off easily.

Schritt 4

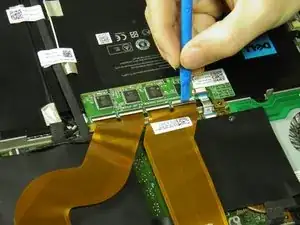

Use the opening tool's angled edge to lift the clasps securing the screen and motherboard cables.

It’s not necessary to remove the cables. Unclip the white touch cable from the touch board as shown in step 8, then remove the two screws holding the board to the frame, as shown in step 9. The board can then be moved out of the way to lay flat on your work surface without having to disconnect all the cables. Doing this eliminates this step and step 5. The order of operations then would be steps 1-3, 8, 9, 6, 7, and 10.

Strephon Alkhalikoi - 14/08/21

Schritt 5

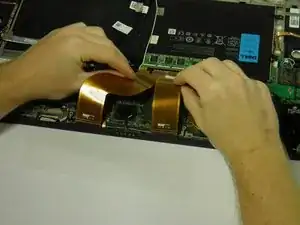

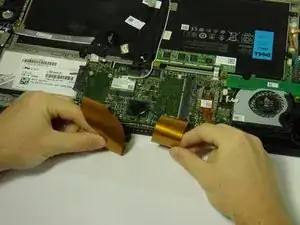

Disconnect the screen and copper colored motherboard cables and tuck them under the device to prevent future hassle.

Schritt 6

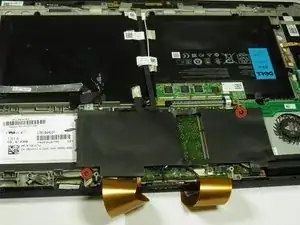

Remove the two black 3mm screws from the internal cover with a Phillips 00 screwdriver.

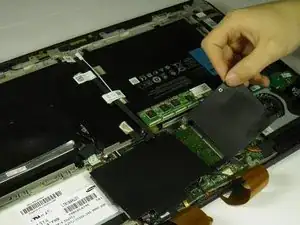

Remove the internal cover.

Schritt 7

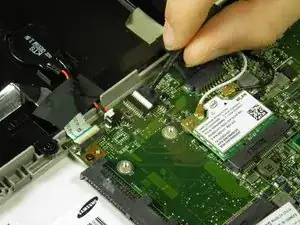

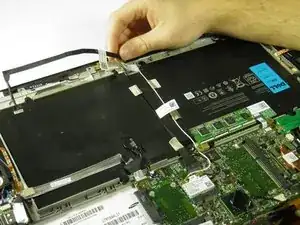

Disconnect the black camera cable and pull it back to prevent future hassle.

Schritt 8

Use the angled edge of the plastic opening tool to lift the clasp securing the touch control board cable.
Disconnect the silver and blue touch control board cable.
