Dell XPS 18 Wireless WLAN Card Replacement

Geschrieben von: Austin Weir
  • Kommentare: 2
Dell XPS 18 Wireless WLAN Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

This guide will show how to replace the wireless WLAN card in your Dell XPS 18. It may need to be replaced if you can no longer connect to wireless internet.

  1. stUOnfnBUE6YN5x3

    • Turn the device on its screen.

    • Remove the ten 4mm screws using a T8 Torx screwdriver.

  2. EsppVhHdF4hHa6VF

    • Gently flip out support feet located near the bottom of device.

  3. P4B3cAjtRTeQ3VGb

    • Gently lift the back cover off the device. The back cover should come off easily.

  4. fTSYpVFuLmSxyUJ2

    • Use the opening tool's angled edge to lift the clasps securing the screen and motherboard cables.

    It’s not necessary to remove the cables. Unclip the white touch cable from the touch board as shown in step 8, then remove the two screws holding the board to the frame, as shown in step 9. The board can then be moved out of the way to lay flat on your work surface without having to disconnect all the cables. Doing this eliminates this step and step 5. The order of operations then would be steps 1-3, 8, 9, 6, 7, and 10.

    Strephon Alkhalikoi -

  5. EcLqseYCFmwLRLHk
    EcLqseYCFmwLRLHk
    wLFDJOfY12MWvWsw

    • Disconnect the screen and copper colored motherboard cables and tuck them under the device to prevent future hassle.

  6. VyMmSRqHgi3wosxM
    VyMmSRqHgi3wosxM
    TVOQHvYIomKaPFYU

    • Remove the two black 3mm screws from the internal cover with a Phillips 00 screwdriver.

    • Remove the internal cover.

  7. DAxGhwqhrHxvIomv
    DAxGhwqhrHxvIomv
    DpVjmVeKeQgQTMGF

    • Disconnect the black camera cable and pull it back to prevent future hassle.

  8. LsPNkuLbO5B1KlbJ
    LsPNkuLbO5B1KlbJ
    TZloyGQoOdXucIXh

    • Use the angled edge of the plastic opening tool to lift the clasp securing the touch control board cable.

    • Disconnect the silver and blue touch control board cable.

  9. m6JfJY4Jjg4pL52D
    m6JfJY4Jjg4pL52D
    Yi1BMNnZXC2wIEGL

    • Remove the two silver 3mm screws holding the touch control board in place with a Phillips 00 screwdriver.

    • Remove the touch control board.

  10. Pxrw1rbrYGwj21pD

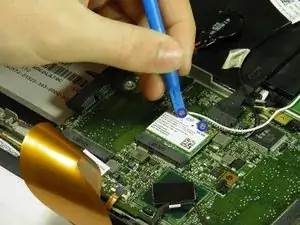

    • Use the plastic opening tool's angled edge to remove the black and white wires connected to the wireless WLAN card.

    I pulled these up with my fingernails - I have small hands and the tool was too clumsy for me.

    stacysaw -

  11. vFfmZdOFaRYiW5q6
    vFfmZdOFaRYiW5q6
    WuBFSZTHORfG546L

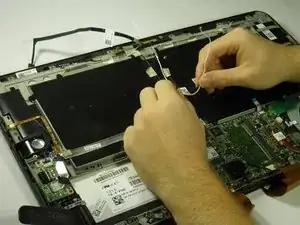

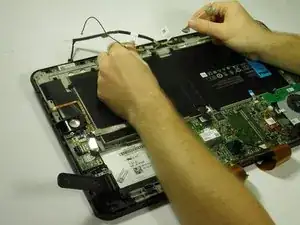

    • Pull back the cables.

  12. GmANhEplbtl3L6r1

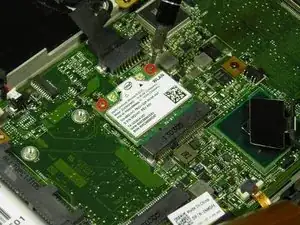

    • Remove the two silver 3mm screws with a Phillips 00 screwdriver.

  13. dSDdFA1cAvpvCKX2
    dSDdFA1cAvpvCKX2
    VUL5ffENmWF1FvFD

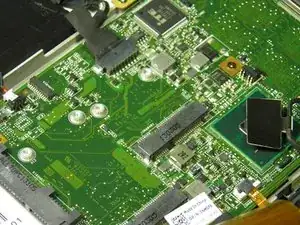

    • Angle the wireless WLAN card upward and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
