Einleitung
-
-

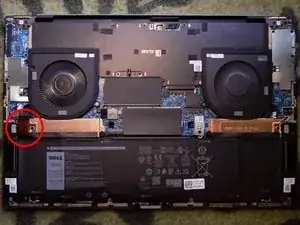

Unscrew 8 T5 screws. Use an opening tool to pop open the plastic tabs holding the aluminum and carbon fiber shells together.
-
-
-

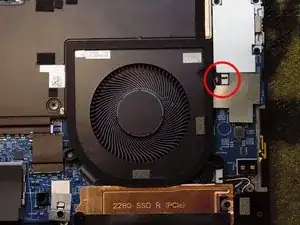

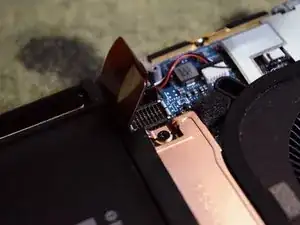

Gently unplug the fan connector.
-
Remove the two PH1 (red) and single PH00 (blue) screws.
-
The fan may now be lifted from the chassis. Reverse these steps to install the new fan.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
