Dell XPS M1210 Fan Replacement

Geschrieben von: Dave
  • Kommentare: 3
Dell XPS M1210 Fan Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

The laptop has one main fan. If cleaning is required, it would be determined by visual inspection. The fan should be free of dust, dirt, or any other visible obstructions that could prevent the fan or flow of air from moving freely. If the fan is clean, but is still noisy or is not spinning ...then, replacement is recommended.

  1. 13WUaGTKs2BkS63L
    13WUaGTKs2BkS63L
    vOwmmQFqVJrJGLWx
    p4JTxKKNZVwmBarN

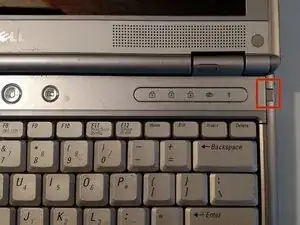

    • Before opening up your laptop make sure it is completely turned off and is not connected to the charger.

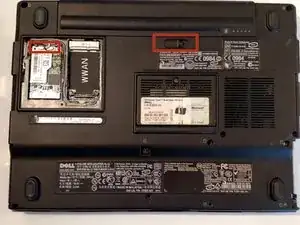

    • To prevent any damage to the system ,remove the main battery.

    • Turn the computer upside down and loosen the captive screw on the communications card cover.

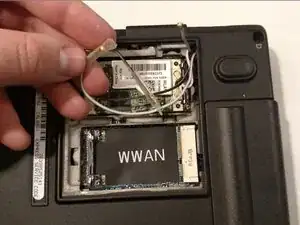

    • Disconnect any antenna cables that are attached to the Mini-cards.

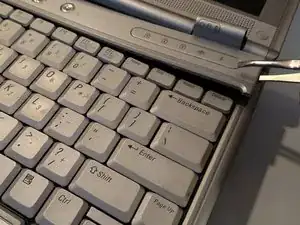

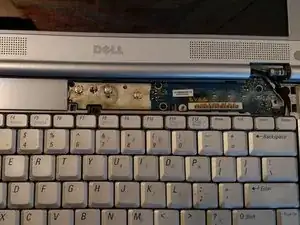

  2. j1sQu45sAGAWlnxp
    j1sQu45sAGAWlnxp
    3JkMMFiqnmQBeaI4
    dKrNUsiGEetCwECO

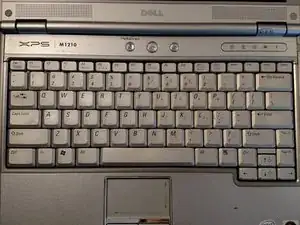

    • Open the display 180 degrees.

    • Insert a plastic scribe or a flat head screwdriver into the indent of the hinge cover on the right. Pry open the hinge cover.

    • Be gentle when prying open the hinge cover. Wiggle the cover left and right slowly lifting it up.

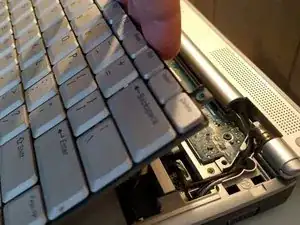

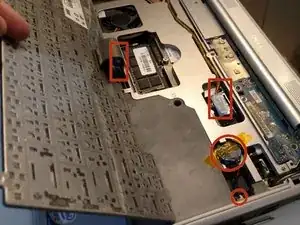

  3. ISlWJ2xGbgDmFrtH
    ISlWJ2xGbgDmFrtH
    2Ti2WJYGKBMTbASN
    oGD6KJQgTcYWlJ3x

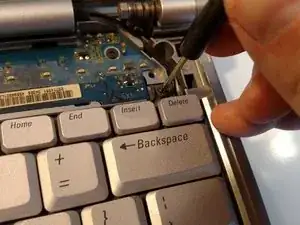

    • Remove the three Philips head screws at the top of the keyboard.

    • Lift the keyboard slightly up to disconnect the keyboard cable from the system board.

    • There will be a keyboard-connector pull-tab that will separate the keyboard from the laptop.

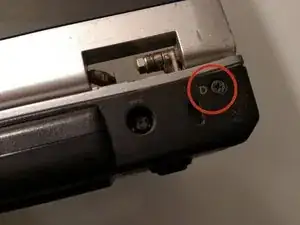

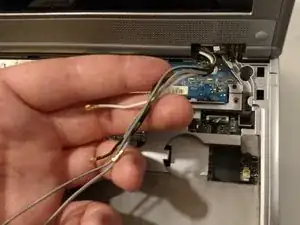

  4. jmNULlBflRRp44vD
    jmNULlBflRRp44vD
    JKHivdRoHNDQq6UP
    CaLr6HBSOAp3UTxK

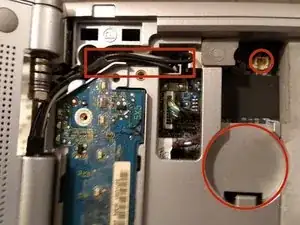

    • Use the pull-tab to disconnect the display cable from the system board.

    • Disconnect the display cable and the antenna cables from their cable channels.

    • Remove the four screws that connect the display to the computer base. There should be two on the bottom and two on the back of the computer labeled "D".

    • The display should then be disconnected from the rest of the laptop.

    Why does the display need to be disconnected??

    Louis Cox -

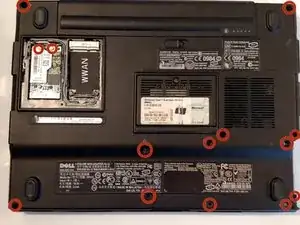

  5. BlUBMbbEdwjIUOCM
    BlUBMbbEdwjIUOCM
    1ajBIlcuIRngt5oo
    fVCgEq6lDjZIvLR2

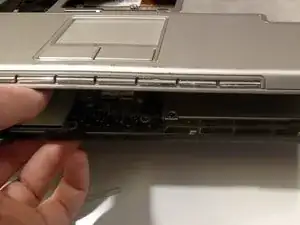

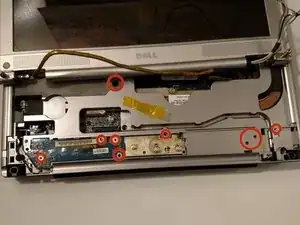

    • To remove the palm rest there will be seven screws labeled "P" that need to be removed.

    • Disconnect the coin-cell battery cable from the system board.

    • Then disconnect the touch-pad connector from the system board.

    • Turn the computer upside down. Loosen the captive screw, and remove the four screws from the bottom of the computer.

    • Lift the palm rest from the back of the computer to separate it.

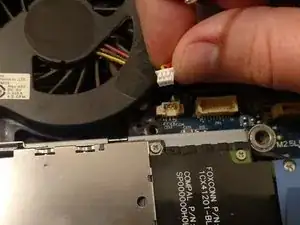

  6. QXfHHNSZHVLRAyDK
    QXfHHNSZHVLRAyDK
    mj6gvvKkmHaI43Hy
    cEUg3eN6cACHCNbY

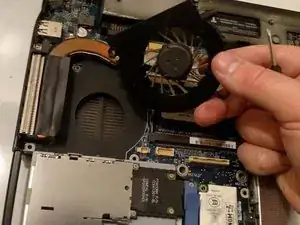

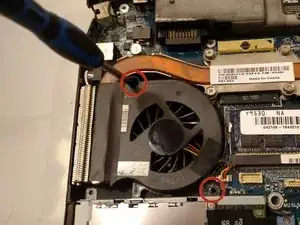

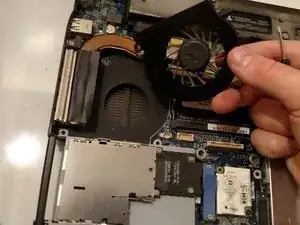

    • Remove the screw from the fan, and then disconnect the fan cable from the system board.

Abschluss

To reassemble your device, secure the fan with the 4 screws, and reinstall the keyboard and hinge cover in reverse order of the above instructions.

Tinte & Feder

Dave

Mitglied seit: 25/01/15

226 Reputation

2 Kommentare

Thanks for the explanation , was simply splendid.

Can you please share the part number of the Fan ? is it DELL XPS M1210 MCF-J10BM05 ?

tvshprakash -

Why do we need to remove the screen?

Louis Cox -
