Dell XPS M1330 Hard Drive Replacement

Geschrieben von: Kai Kapossy
  • Kommentare: 0
Dell XPS M1330 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

If your computer were to experience any unexpected crashes or viruses follow this guide to remove and replace the hard drive.

  1. BVG5kAYEtPTc2to4

    • Flip the laptop on its back, so that the underside is facing up.

  2. HMP1DeKvQTXTAILk

    • Push and hold the slide button to the left and unlock the mechanism.

  3. tGGiRVkruBlWcJUO
    tGGiRVkruBlWcJUO
    IHyR22m2hX6IKUKM

    • Lift the computer up and slowly pull the battery straight out from the device.

  4. omRXGc6df6KoIkAG

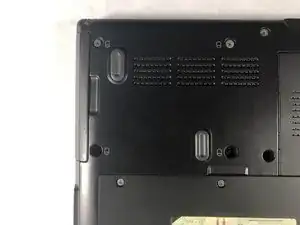

    • Flip the laptop on its back, so that the underside is facing up

  5. tbrcmCqhvBxrmsIX

    • Remove the four 3.0mm Phillips #1 screws securing the hard drive casing.

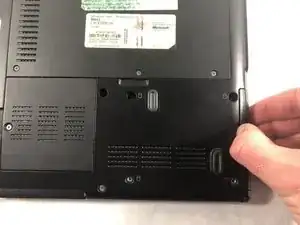

  6. lkuUUSBYvSxd1ZxU
    lkuUUSBYvSxd1ZxU
    cBNqVsVUXWjQ6U2K
    YwY1SETqW2mlVGD2

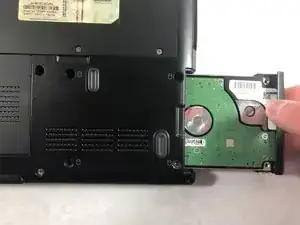

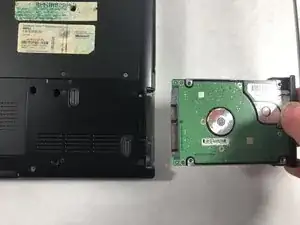

    • Slide the hard drive away from the computer, slowly and carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
