Dell XPS M1530 Hard Drive Replacement

Geschrieben von: Tyler Scholz
  • Kommentare: 1
Dell XPS M1530 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

The purpose of this guide is to remove the hard drive from the computer if it is broken or having issues. Some of the problems associated with a broken Hard Drive are that your computer is not booting up completely, some programs that were working are not recognized anymore, the Hard Drive is not recognized in the C: of "my computer", the computer tells you the drive is not recognized, or that the drive will fail.

  1. wJatXlL6lrCdmwuW

    • Turn the computer upside down with the battery facing you.

    • Turn the computer off and disconnect the charging cable from the computer.

    • Failure to unplug the charging cable may result in electric shock.

  2. IhXR2NZjDY36TLsM

    • Push the switch as far to the right as possible to unlock the battery.

  3. k2jFPu3PqITRYlKx
    k2jFPu3PqITRYlKx
    ENTx41oNDixCGAvy

    • Remove the battery using two hands and pull it away from the computer.

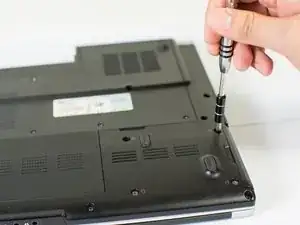

  4. ZvxYtqdMuFQil1CV
    ZvxYtqdMuFQil1CV

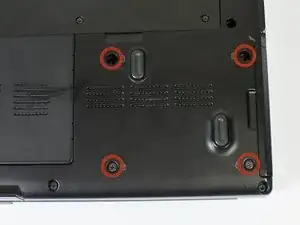

    JimPedqvfKa1dP4L

    • Remove the four Phillips #1 screws holding the Hard Drive in place.

    • Four 3.5mm Phillips #1 screws

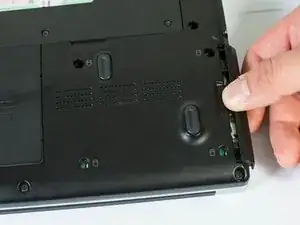

  5. K2TU1QhOBLMLdtVT
    K2TU1QhOBLMLdtVT

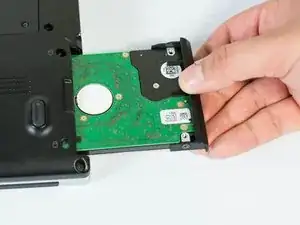

    4aKgZnDsgAKELDNB

    • Pull the Hard Drive out gently using the tab. It should provide enough leverage to pull the drive out smoothly.

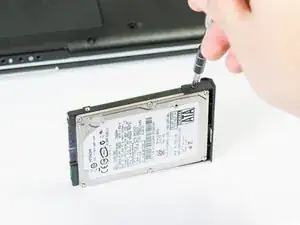

  6. aBIOWTgCFFSHWhUB
    aBIOWTgCFFSHWhUB

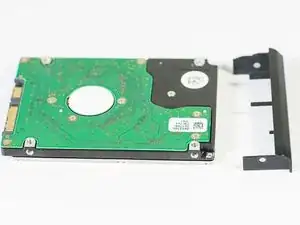

    uNQCQXgnFJbw2fNA

    • Remove both 3.5mm Phillips #1 screws on either side of the plastic casing.

    • There is a second screw on the other side of the casing.

    • Then gently separate the drive from its casing.

    Awesome easy to follow instructions

    Jayde Gaunt -

Abschluss

To reassemble your device, follow these instructions in reverse order.
