Dell XPS M1730 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell XPS M1730 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

8 - 20 Minuten

Einleitung

Replacing Hard Drive

  1. ERoXtBGEErLb126f

    • CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.

    • CAUTION: Before you begin any of the procedur es in this section, follow the safety instructions in the Product Information Guide .

    • NOTICE: To prevent data loss, turn off your computer (see "Turning Off Your Computer" on page 9) before removing the hard drive. Do not remove the hard drive while the computer is on, in standby mode, or in hibernate mode.

    • NOTICE: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.

    • NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system, drivers, and utilities on the new hard drive.

    • Turn the computer over, loosen the tw o captive screws on the hard drive cover, and then remove the cover.

  2. iOdnsUNxHm5LvWTO

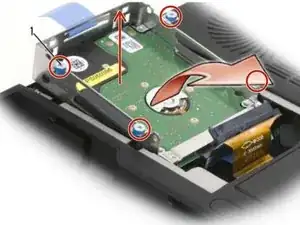

    • Loosen the four captive screws on the hard drive cage and then lift the pull-tab to flip the cage towards the center of the computer so that the SATA cables and connec tors are accessible.

  3. qTYkgvIRbRyBNwgv

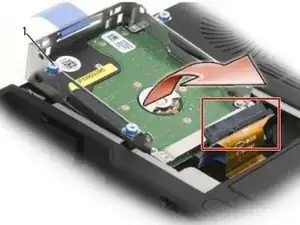

    • Carefully remove the SATA cables from the hard drive or drives that are installed in the cage.

  4. CyvTvRJRXDnbwQQN

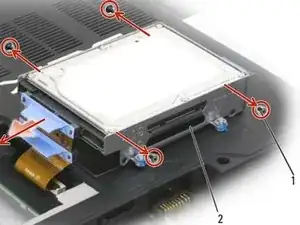

    • Remove two screws on each side of the hard drive cage to free the hard drive, then lift the drive out of its tray in the cage.

    • NOTICE: When a hard drive is not in the computer, store it in protective anti-static packaging.

Abschluss

To reassemble your device, follow these instructions in reverse order.
