Delphi MyFi XM2GO Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 Minuten

Einleitung

Ever want to disassemble and reassemble your Delphi MyFi XM2GO portable XM radio? Follow this guide to learn how to remove the motherboard (PCB logic board) of the Delphi MyFi XM2GO portable XM radio. You will need a Torx T6 screwdriver to complete this guide. Warning: you may have to use your fingernails to pry off certain parts.

  1. 1k6fEtMVZHHpTtVl
    1k6fEtMVZHHpTtVl
    Ig4B6sL1XL5PBM2Z
    HYaZHZHWZjr2iUJH

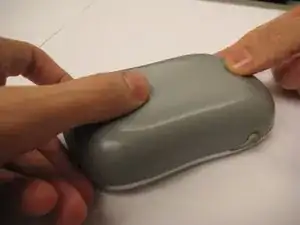

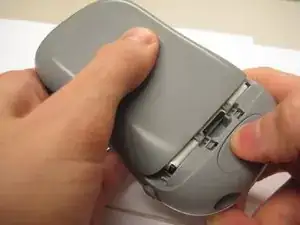

    • Locate the large button on the top of the device.

    • Push down on the button and slide the cover away from the button.

    • The battery removal tab may pop up.

  2. ARfOmF1gmxDRfkja
    ARfOmF1gmxDRfkja
    Q3CKLHrCQBKCadT3
    uCMYmEiByHdXFwvg

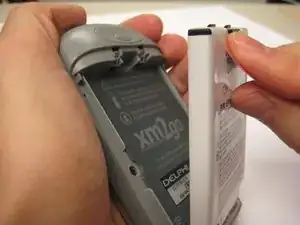

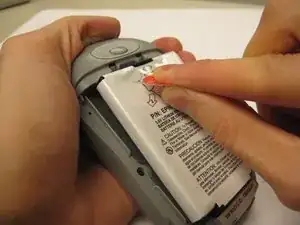

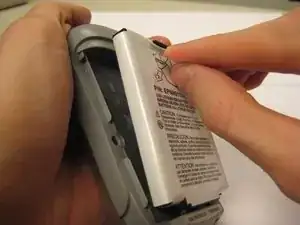

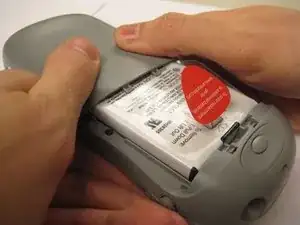

    • Grab the red pull tab and pull down to unlock the latch.

    • Pull the battery out.

    Which is positive and which negative?

    Glen Blaylock -

    Which side is positive

    Glen Blaylock -

  3. HNpDbe1gOfVhAliX
    HNpDbe1gOfVhAliX
    SUD6HCL2JCHf1WMD

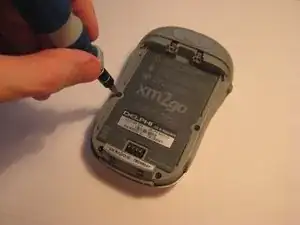

    • Remove the four screws from the bottom of the device using a T6 Torx screwdriver.

  4. OXDhbbFSZTRAcaCx
    OXDhbbFSZTRAcaCx
    KWSVsFDxtRDHSbkm
    FHCN6HiO3Ts53x6Y

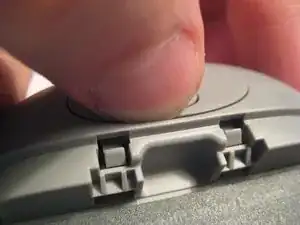

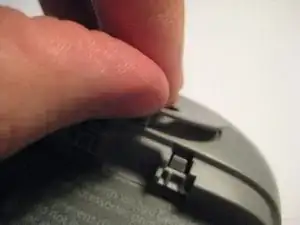

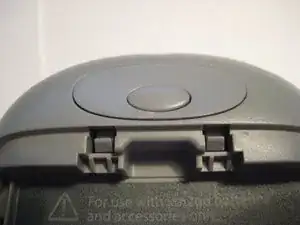

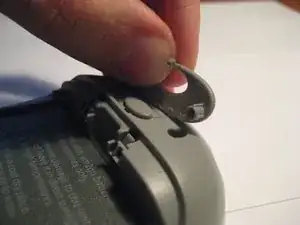

    • Remove the button cover on the back of the device by prying it up with a spudger or your thumb nail.

  5. VGbDFKUN4P3TIbrm
    VGbDFKUN4P3TIbrm
    qPhWZbvpcRbYWPyD
    11rXYHjoaMabTBmH

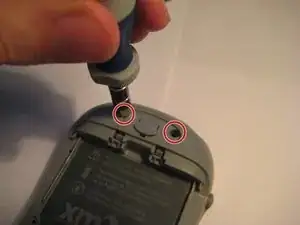

    • Remove the two screws under the button using the T6 Torx screwdriver.

  6. BMMlFyUMNC4IAAx2
    BMMlFyUMNC4IAAx2
    3WBMdAloaAXSDRso

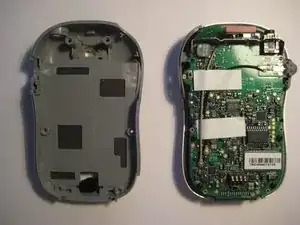

    • Remove the back cover.

  7. rkLPIVCPwN5DnKg3
    rkLPIVCPwN5DnKg3
    P1xVogti1ecMSFGG

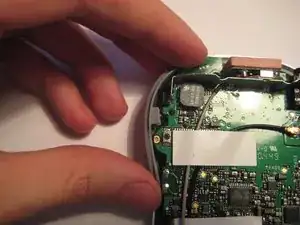

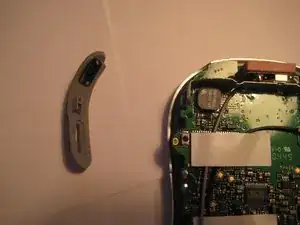

    • Remove the power button by pulling it to the left.

  8. qvBg2kQQqysiZJW2
    qvBg2kQQqysiZJW2
    CMegkeYifLA5yMN6

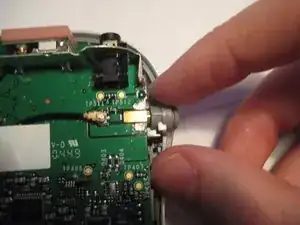

    • Remove the plastic antenna extension connector on the right side of the device.

  9. kATyDcKZkKJuMal1
    kATyDcKZkKJuMal1
    NOGFc3AOdIEA3JSs
    2drtFqNCDOr1N2j6

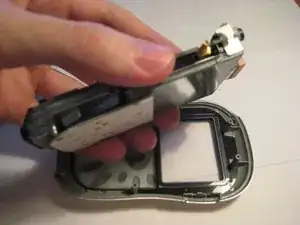

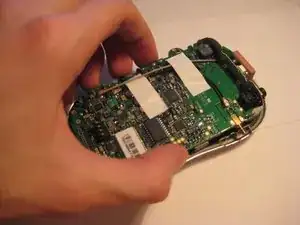

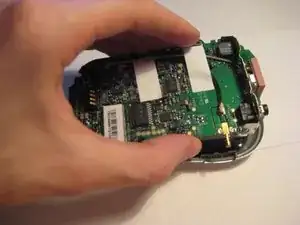

    • Pull up on the motherboard to remove it from the device.

    • The LCD screen and keypad are only connected to the motherboard with ribbon cables. They will hang down as the motherboard is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
