Asus Eee PC 1015PN motherboard dismantling (English)

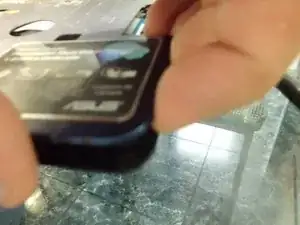

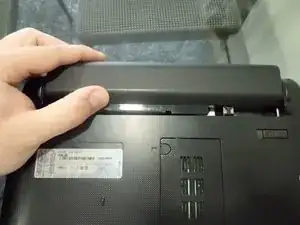

To remove the battery, unlock the marked tabs.

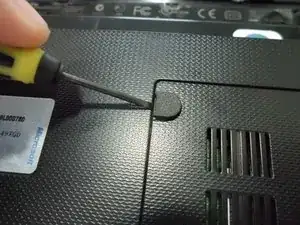

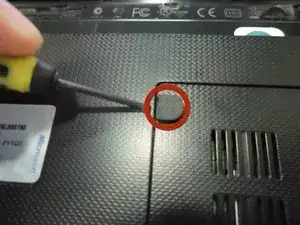

To remove the memory, lift the plastic tab covering the memory screw with a small slot head screwdriver.

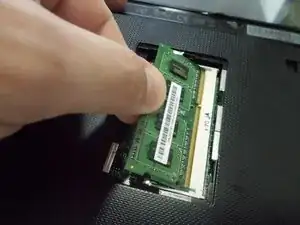

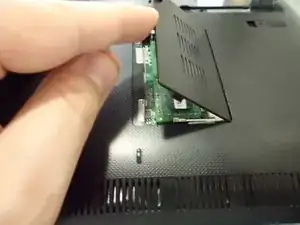

Lift the plastic cover and remove the SO-DIMM module.

Remove the dummy SD-Card

Unscrew 4 screws that are located in the battery compartment. Once removed, plastic tabs need to be removed on the upper part.

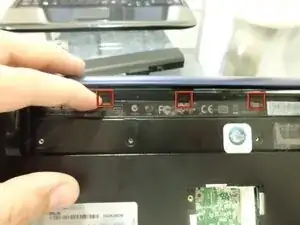

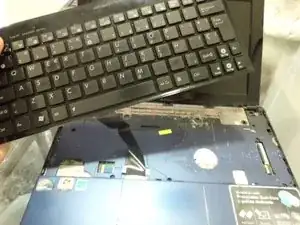

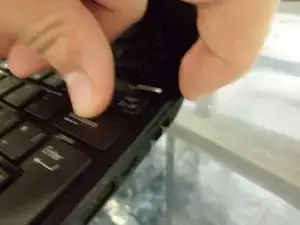

With an extraction tool, separate the keyboard chassis from the netbook, it has many tabs.

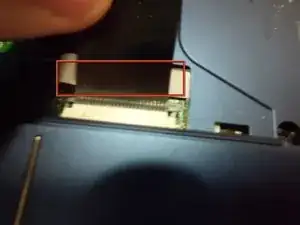

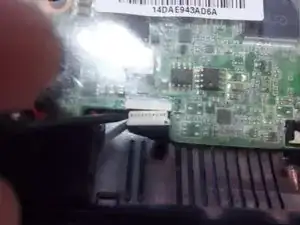

While separating the keyboard chassis, be careful with the keyboard connector. To remove it, simply slide the plastic retainer to be able to free it.

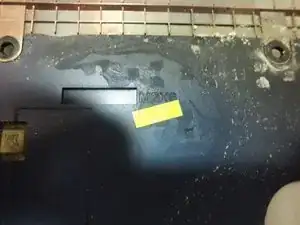

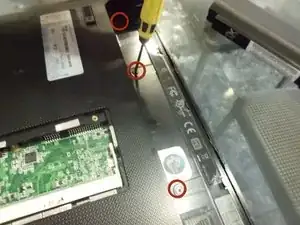

Unscrew the marked screws. One of those screws is behind a warranty sticker.

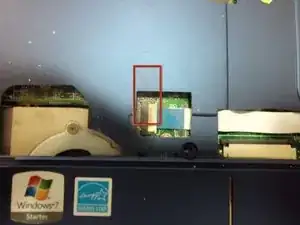

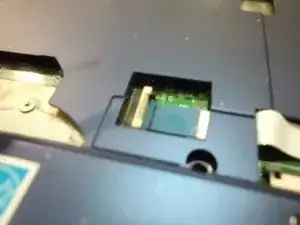

Disconnect the mouse connector. The connector has a white plastic tab that disconnects the connector.

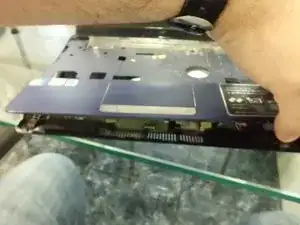

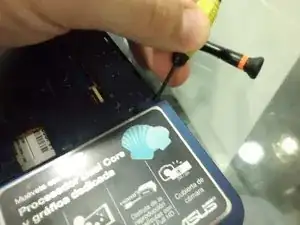

With a flat screwdriver, release two plastic tabs ( 1 on each side), and with pressure in the front, release the chassis.

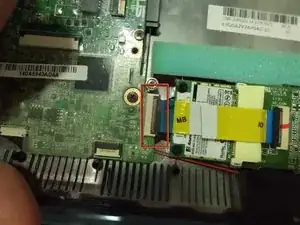

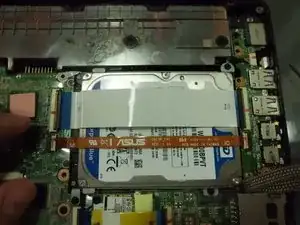

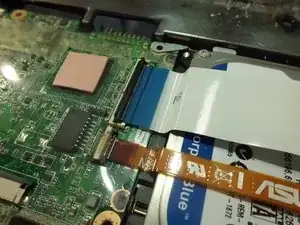

To disconnect the hard drive, two connectors need to be removed, pay attention to the connectors sides, the one on the left in marked as MB and the right is marked as IO.

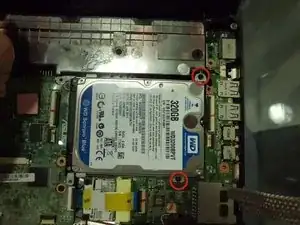

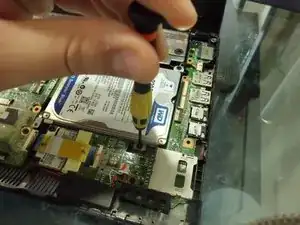

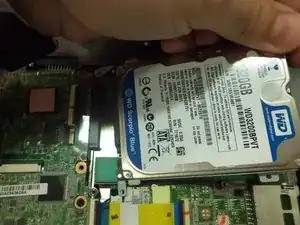

Remove the screws, and slide the hard drive free.

Disconnect the motherboard connector and the IO plate.

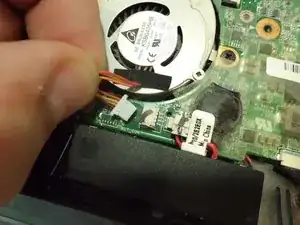

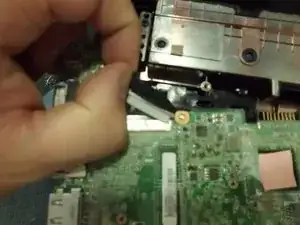

Remove the fan connector, the BIOS battery and the upper connector.

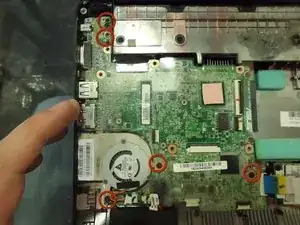

Remove the plate screws and release the screen connector.

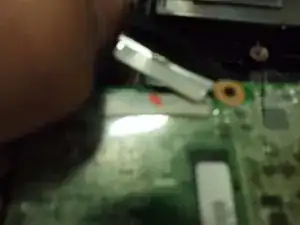

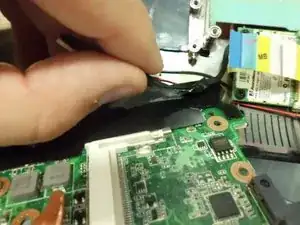

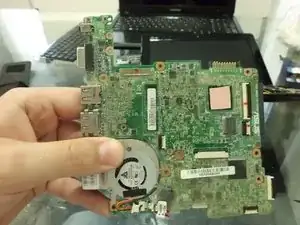

Remove the motherboard from the chassis, and disconnect a connector that is glued.
