Dewalt DCD778 Clutch Replacement

Geschrieben von: Brittany
  • Kommentare: 0
Dewalt DCD778 Clutch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 40 Minuten

Einleitung

If you are having trouble controlling the speed of the drill there may be a problem with your clutch. By following this guide you will learn how to replace it.

  1. QfP5HIbuWB1og1Tc

    • Grab the drill in one hand and cup the battery (located at the bottom of the drill) with the other hand.

  2. 3QWPOUZ66CmP3P5O

    • Use your other hand to push down on the yellow button on the battery.

  3. H4YywK2fk5DHjkGY

    • Pull the battery in a horizontal direction away from the drill.

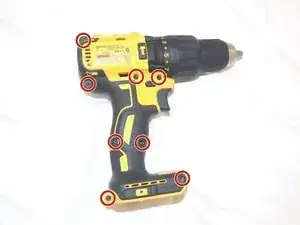

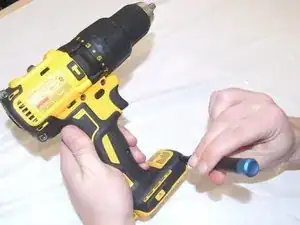

  4. dMqROKGaEUpe1Q2n
    dMqROKGaEUpe1Q2n
    xuZoDbKW3MFBHrYH

    • Remove the eight 16 mm, Torx Security #15 screws.

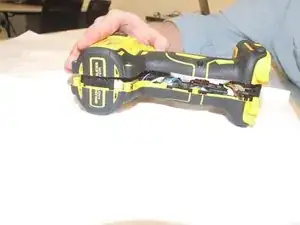

  5. CvmVHk6M1yB23GMC

    • Lay the drill on its side and gently lift the top half off it.

  6. nobyWUjGuCQ4RASI

    • Lift drill mechanism from the drill assembly.

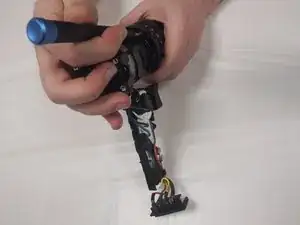

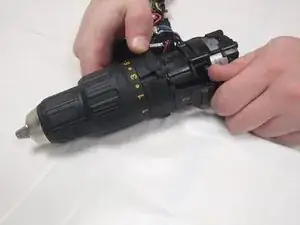

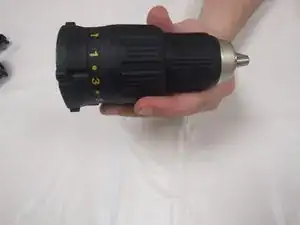

  7. uonlhIRaYtxfRxFC
    uonlhIRaYtxfRxFC
    3KpncqF2F4maOFpA
    qlPoDN1j1n4uFlHN

    • Twist slightly and pull clutch away from motor.

    • Remove clutch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
