Dewalt DW511 Hammer Drill Gearcase Replacement

Geschrieben von: Andrew Grayson Crawford
  • Kommentare: 0
Dewalt DW511 Hammer Drill Gearcase Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

35 - 50 Minuten

Einleitung

This guide will show you how to replace the gearcase assembly on the Dewalt DW511 Hammer Drill. The gearcase is responsible for the translation of motion between the motor and the spinning bit, controlling the speed and torque of the motion. The gearcase is attached to the armature, so the entire assembly will need to be removed as one piece.

  1. CVYmmYXBjY4gbZM3
    CVYmmYXBjY4gbZM3
    Rb1fLIfr5CGPjBIP
    JCHH4cLPDeRN6n3G

    • Remove three 19 mm T20 Torx screws from the back of the drill.

  2. jvOUgOEU2SV1hZHm
    jvOUgOEU2SV1hZHm
    BDm4rVK22JuLtYlw
    dUd6Gocg3avQpDdT

    • Place an opening tool in the groove line of the handle and pop the back loose.

    • Grab the drill with two hands and pull the cover off.

  3. y1EndtlkNQPNfBAO
    y1EndtlkNQPNfBAO
    WNq2TrPZMoqCAdmt

    • Firmly grab the body of the trigger.

    • Slowly pull the trigger until the entire body is out and only attached by wires.

  4. FrlnP1wKlWu3wiru
    FrlnP1wKlWu3wiru
    35KkefyTklP1Osu3
    BygmZCJSF4viUJ63

    • With sharp point tweezers, push the little metal flap up in the hole holding the wire.

    • Clamp the wire with blunt tweezers, and slowly pull the wire out.

  5. fJwbZef6OUZlUdD1
    fJwbZef6OUZlUdD1
    2TCIuBt3AJGSdZrk
    hOPOb61uYNk3JLAd

    • With a pair of blunt nose tweezers, grab the white wire.

    • Carefully wiggle the wire loose.

    • Pull the wire slowly until it comes out.

  6. AkMATgPGHkxtSNML

    • With both wires free, the power cord is free from the trigger body.

  7. TO5mWIRFnYWHmn3f
    TO5mWIRFnYWHmn3f
    gx6CIxpL1xEODSeh
    xMIOMUNQFoShCmuG

    • Use an opening tool to lift up the spring holding down the brush.

    • Remove the brush from its holding.

  8. kxCxpBXBlh2cmEqK
    kxCxpBXBlh2cmEqK
    DtuTAbYNKsKMQqqb

    • With a pair of blunt nose tweezers, grab the red wire.

    • Carefully wiggle the wire loose.

    • Pull the wire slowly until it comes out.

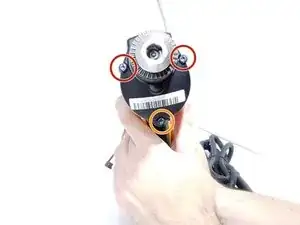

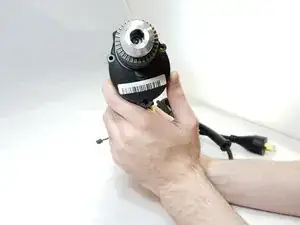

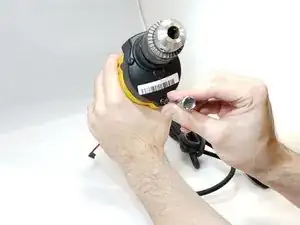

  9. Yk1QfXgS5TsnvlVC
    Yk1QfXgS5TsnvlVC
    dyTtQiN6cLJ1Tdsb
    BHu5xxJAemIGMpXS

    • Remove two 45 mm T20 Torx screws.

    • Remove one 30 mm T20 Torx screw.

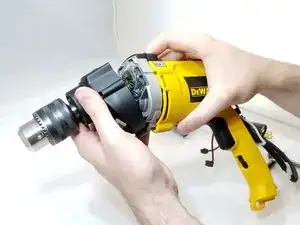

  10. K6eLMnqHvNODKZls

    • Pull off the top case and set it aside.

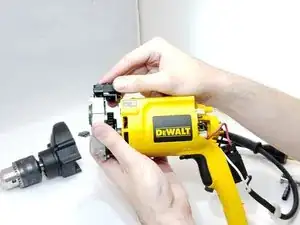

  11. YOasscaXxlHeVfWT
    YOasscaXxlHeVfWT
    lUuKZgRdhNZbaYpb
    TmmQfNRLqcSjLQPb

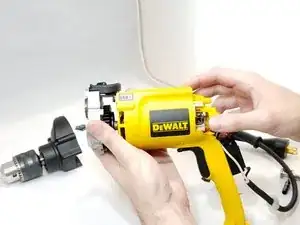

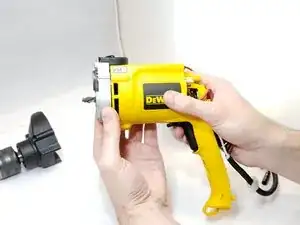

    • Grab the gear case cover and gently pull it out just enough to where it exposes the lever assembly.

    • It is important that the brushes are removed before you do this step or you may damage your brushes.

    • The lever assembly can now be lifted out.

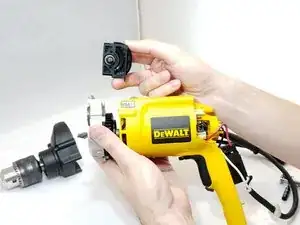

  12. 1x14MXgRncgPgUV2

    • With the old lever assembly removed you can now replace it with a new one.

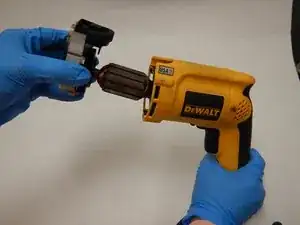

  13. MdlvTKVq6AiHmkd4
    MdlvTKVq6AiHmkd4
    ICcVcZOlkMEdWkun
    RwIRJIbNVGeeRmYR

    • Hold the hammer drill tool firmly by the handle.

    • Gently separate the gear case unit from the hammer drill body.

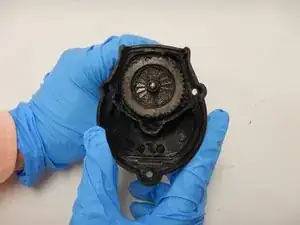

  14. IBvswFjBdSqgQJ3q
    IBvswFjBdSqgQJ3q
    XTNMHctvnUODo5Vp
    I6bdnGAmqOEigGgE

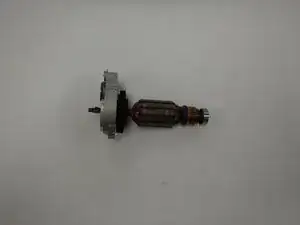

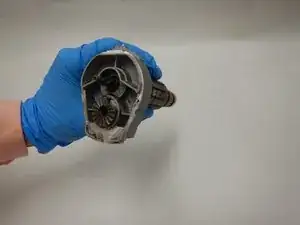

    • The metallic alloy gear case is attached to the armature and removes as a unit. Separation of the gear case from the armature requires specialized hand tools.

    • The third photo shows a gear behind the chuck that interlocks to the gear case.

    • The plastic housing is prone to damage if excessive force is applied during the removal of the gear.

Abschluss

To reassemble your device, follow these instructions in reverse order.
