Dewalt Nailers DCN660D1 2018 Driver Removal

Geschrieben von: Arthur Shi
  • Kommentare: 0
Dewalt Nailers DCN660D1 2018 Driver Removal

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows how to remove the blade driver assembly for the Dewalt Nailers DCN660D1 2018.

  1. cVQdYFAkWBwF1jkU
    cVQdYFAkWBwF1jkU
    6QneiNayynNDJI4h
    6mAcC4BRgVw5VWPW

    • Before you begin the repair, remove the battery from the device.

  2. xanwoVYA3yXUIS1q

    • Use a T10 driver to remove the ten screws securing the outer housing.

    • Some of these screws are deeply recessed. You can use a flathead screwdriver to loosen these screws.

  3. pPK1kHoyNHSZcryX
    pPK1kHoyNHSZcryX
    WKpouGdaxZM16uGX

    • Lay the device on its left side (with the belt hook).

    • Lift and remove the right housing from the device.

  4. ilgumtWXBEb1MTZy
    ilgumtWXBEb1MTZy
    MpIKgohFKyFEBKym

    • Remove the lock button from its recess.

    • During reassembly, make sure that the button is properly seated and engages the trigger.

  5. ITIp5y2OLviCbtCj
    ITIp5y2OLviCbtCj
    AZCQdVguFhrkDGtb

    • Slide the battery connector out of its recess.

  6. xDFTvF323rMBYcdi
    xDFTvF323rMBYcdi
    PF4FIxtF3dbFaB1o
    xsVN3QjeDlQc4tUr

    • Remove the switch board from its housing recess.

    • Remove the two spring clips from the housing.

  7. eerZjmL6YNFEAmWk
    eerZjmL6YNFEAmWk
    JjYkuheAwgUlF1OK
    hm5aiXQqw261U2Fr

    • During reassembly, use these photos to help you align all the loose parts back into the housing.

    • Be sure to route the wires through the yellow groove.

    • Be sure to reattach the spring clips.

  8. qXuB6BH4S2JhR6UC
    qXuB6BH4S2JhR6UC
    aIqFrgTlChlVObKW
    tnSbO4m2FODkyjmI

    • Carefully flip the device over.

    • Remove the left housing from the device.

  9. YxhIIZMtBktCKkF2
    YxhIIZMtBktCKkF2
    G2PY53ahpFcUSxto
    XxJhNEmbcHvveqSw

    • The spring under the release button has a tendency to fly out. Be careful not to lose the spring.

    • Carefully remove the release button from the device.

    • Remove the button spring from the device.

  10. lxPbXtKYYZk5XfKK
    lxPbXtKYYZk5XfKK
    Zu5CZUnIyuDaSyXN

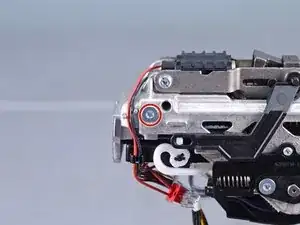

    • Use a T20 driver to remove the two screws (one on either side) securing the back support .

  11. kNjEKA6k2jIabeWV
    kNjEKA6k2jIabeWV
    xlFJ4f514n66QWkt

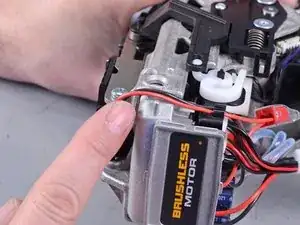

    • Loosen the two solenoid wires from the back support.

  12. ZDDUQUBJKv5YL3pw
    ZDDUQUBJKv5YL3pw
    YTq1rEllj5ve6nEb

    • Pull the back support straight out of the device.

  13. UZPK1iDdmM3qSAO5
    UZPK1iDdmM3qSAO5
    SCimvYlrW6iFHnUk
    bQch5cobmRUOFCcw

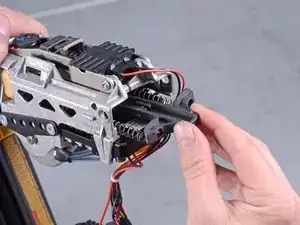

    • Grasp the driver assembly by its back and pull it straight out of the device.

    • If you are having trouble pulling the driver assembly out, proceed to the next step.

  14. FCQZxy6e56bBrSEn
    FCQZxy6e56bBrSEn
    MqiH1BThhZZk4tKe

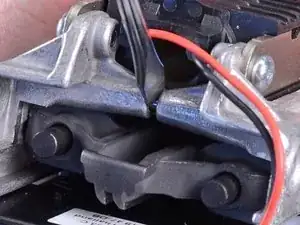

    • If you have trouble pulling the driver assembly out:

    • Insert a flathead screwdriver into the casing seam above the driver assembly.

    • Slightly pry the housing apart to widen the space for the driver assembly to slide out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
