Dewalt Nailers PTO Assembly Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Dewalt Nailers PTO Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows how to remove and replace the PTO assembly for the Dewalt Nailers DCN660D1 and DCN680D1. The replacement part does not come with some minor components, so you must transfer them from the original part.

  1. cVQdYFAkWBwF1jkU
    cVQdYFAkWBwF1jkU
    6QneiNayynNDJI4h
    6mAcC4BRgVw5VWPW

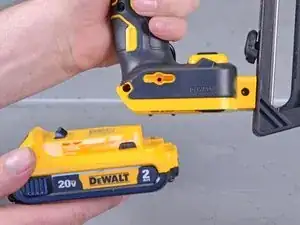

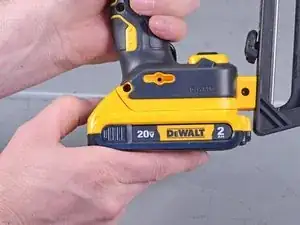

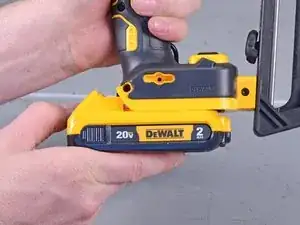

    • Before you begin the repair, remove the battery from the device.

  2. xanwoVYA3yXUIS1q

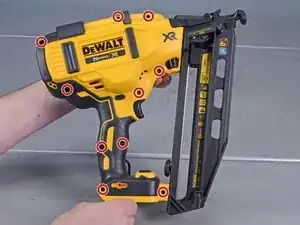

    • Use a T10 driver to remove the ten screws securing the outer housing.

    • Some of these screws are deeply recessed. You can use a flathead screwdriver to loosen these screws.

  3. pPK1kHoyNHSZcryX
    pPK1kHoyNHSZcryX
    WKpouGdaxZM16uGX

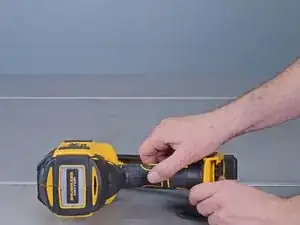

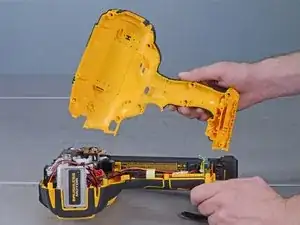

    • Lay the device on its left side (with the belt hook).

    • Lift and remove the right housing from the device.

  4. ilgumtWXBEb1MTZy
    ilgumtWXBEb1MTZy
    MpIKgohFKyFEBKym

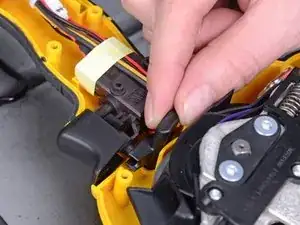

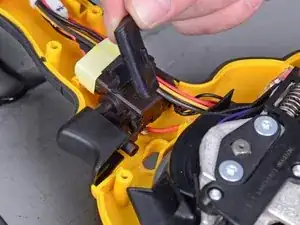

    • Remove the lock button from its recess.

    • During reassembly, make sure that the button is properly seated and engages the trigger.

  5. ITIp5y2OLviCbtCj
    ITIp5y2OLviCbtCj
    AZCQdVguFhrkDGtb

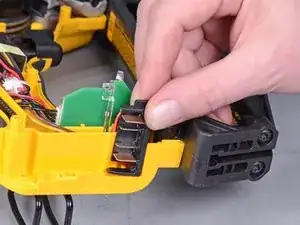

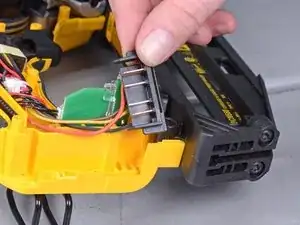

    • Slide the battery connector out of its recess.

  6. xDFTvF323rMBYcdi
    xDFTvF323rMBYcdi
    PF4FIxtF3dbFaB1o
    xsVN3QjeDlQc4tUr

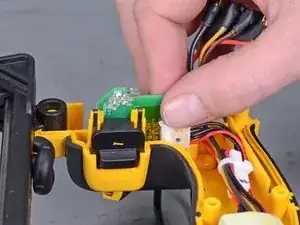

    • Remove the switch board from its housing recess.

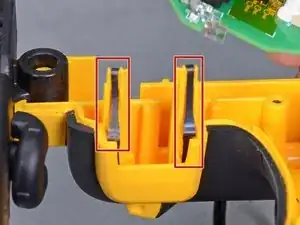

    • Remove the two spring clips from the housing.

  7. eerZjmL6YNFEAmWk
    eerZjmL6YNFEAmWk
    JjYkuheAwgUlF1OK
    hm5aiXQqw261U2Fr

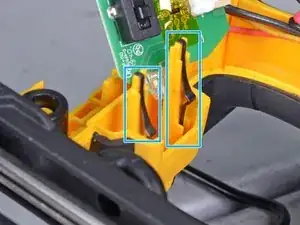

    • During reassembly, use these photos to help you align all the loose parts back into the housing.

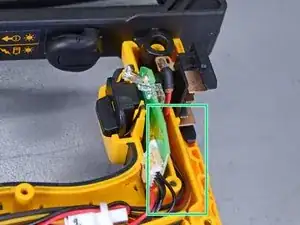

    • Be sure to route the wires through the yellow groove.

    • Be sure to reattach the spring clips.

  8. qXuB6BH4S2JhR6UC
    qXuB6BH4S2JhR6UC
    aIqFrgTlChlVObKW
    tnSbO4m2FODkyjmI

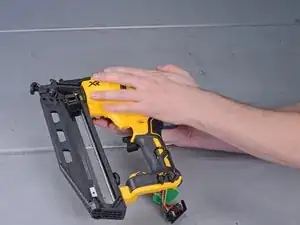

    • Carefully flip the device over.

    • Remove the left housing from the device.

  9. YxhIIZMtBktCKkF2
    YxhIIZMtBktCKkF2
    G2PY53ahpFcUSxto
    XxJhNEmbcHvveqSw

    • The spring under the release button has a tendency to fly out. Be careful not to lose the spring.

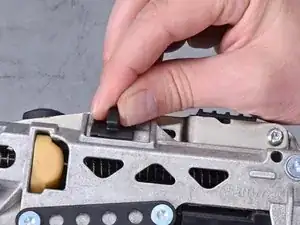

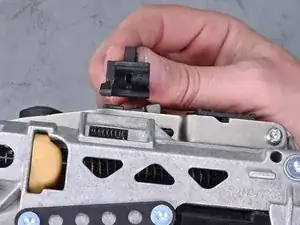

    • Carefully remove the release button from the device.

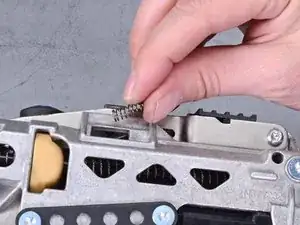

    • Remove the button spring from the device.

  10. jMJStXYSRtfTukQf
    jMJStXYSRtfTukQf
    iKd2cvPxdqco4VWv

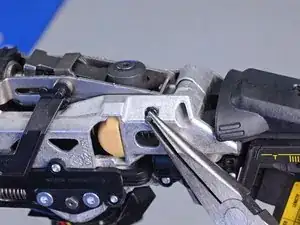

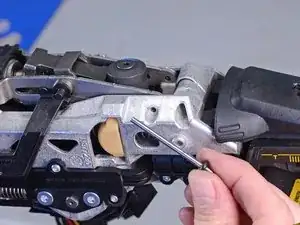

    • Slide the dowel pin securing the PTO assembly out of the device.

  11. 4COuFhZHar2K1CHl
    4COuFhZHar2K1CHl
    lSGBrqbvHPhPbPWK

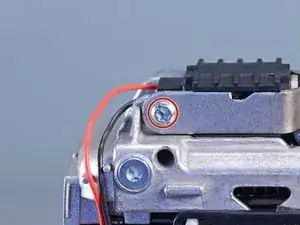

    • Use a T10 driver to remove the two screws securing the solenoid.

  12. EGaIIX6TwLtgJPtF
    EGaIIX6TwLtgJPtF
    yTUXGN3mpLxNUNCE

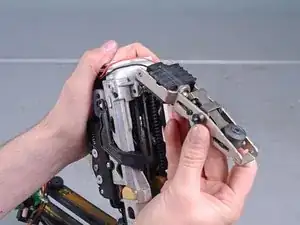

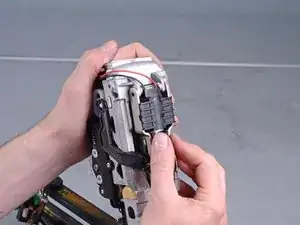

    • Lift the solenoid away from the device.

    • The solenoid is still connected to the device by two wires. Be careful not to strain the wires.

  13. jso4pSqCPPOQO2tJ
    jso4pSqCPPOQO2tJ
    J3Zdd6synyQTM2Ys
    wFqyKQta2VJeMUqq

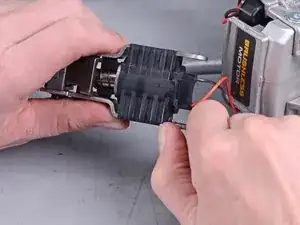

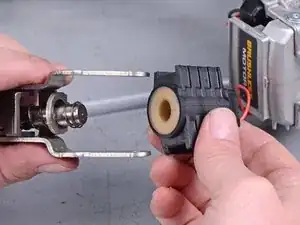

    • Slide the solenoid off the PTO assembly's rails.

  14. Ag63n1nmF64CLIyn
    Ag63n1nmF64CLIyn
    IoLtA6KhBhUR133Y

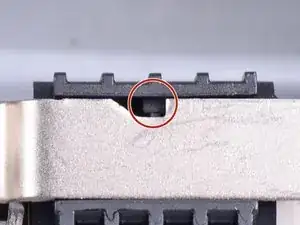

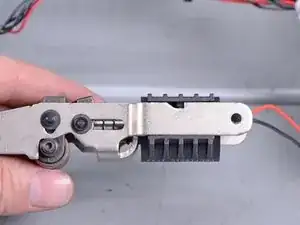

    • Reassembly tip: When you slide the solenoid back onto the PTO assembly, make sure to align the plastic pin to the notch.

  15. TClUM2T1nRyROaUs
    TClUM2T1nRyROaUs
    NGkVJLvXwDAnALXp
    kqKqbYMIZdIRxTry

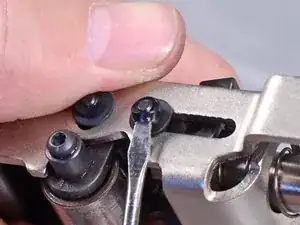

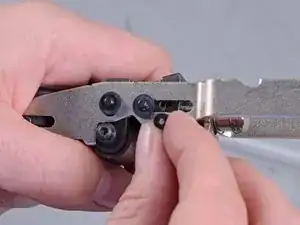

    • Use a flathead screwdriver to pry off the rubber stopper securing the plunger pin.

    • Retain the rubber stopper and washer for your replacement assembly.

  16. eGbexUS2nyKW2qAd
    eGbexUS2nyKW2qAd
    pdV4B4HBNxRdw3cw

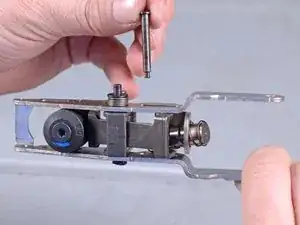

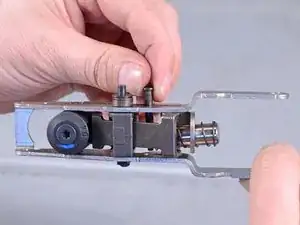

    • Remove the plunger pin from the PTO assembly.

  17. SNJFy2t3rkkuHhwW
    SNJFy2t3rkkuHhwW
    sNrITEAAqLfHsMxL

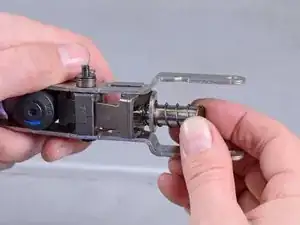

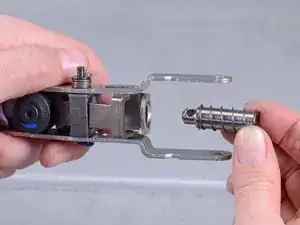

    • Remove the plunger and spring from the PTO assembly.

    • Install the plunger, spring, and pin onto your replacement assembly.

  18. BXR5FyTCx1syjPZP

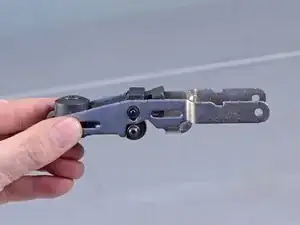

    • Only the PTO assembly remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
