Dexcom G6 Receiver Display and Front Bezel Replacement

Geschrieben von: Andrew S
  • Kommentare: 9
Dexcom G6 Receiver Display and Front Bezel Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show you how to disconnect the display and display frame from the motherboard.

  1. TQH5hba2OEb12Eyu

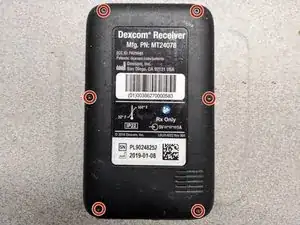

    • Unscrew the 6 Torx T5 screws from the back of the device

  2. ZVDEtYgaK1YcrEWJ
    ZVDEtYgaK1YcrEWJ
    t5XDOntxkxoC1n5u

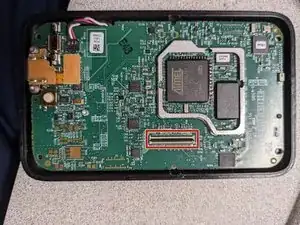

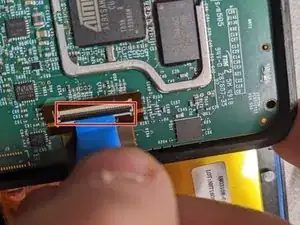

    • Use a spudger to lift up the screen assembly ribbon cable flap, then remove the ribbon cable.

    • Screen Information: Model AM0310R-04 Lot # NHT18080052

    Thank you! Where can we buy the screen?

    Enrique -

    I didn't get any of the details on the screen when I tore it down, I will try to get the information from the original display when I can.

    Andrew S -

    Have you found any info on getting a replacement Screen? Some company must make theses

    Jim Beamed -

    Yes, this would be great to know. I can't afford to replace this a 4th for my Daughter, but I while heartedly believe in right to repair!!

    Rafael Rasillo -

    I'm not sure if you can find the displays anywhere. The only number (presumably model number) I could find on the screen was AM0310R-04 and the Lot Number NHT18080052.

    Andrew S -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Andrew S

Mitglied seit: 30/07/21

13837 Reputation

4 Kommentare

Where can the replacement parts be found? And a charging port?

Ron Magliacane -

Also looking 2 the display. Have 2 dexcom receivers here and both with broken displays.

Jeroen -

I'm not sure if you can find the displays anywhere. The only number (presumably model number) I could find on the screen was AM0310R-04 and the Lot Number NHT18080052.

Andrew S -

Sharewith us where we can find the displays to buy

Jeroen -
