Dexcom G6 Receiver Speaker Replacement

Geschrieben von: Andrew S
  • Kommentare: 5
Dexcom G6 Receiver Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

  1. TQH5hba2OEb12Eyu

    • Unscrew the 6 Torx T5 screws from the back of the device

  2. ZVDEtYgaK1YcrEWJ
    ZVDEtYgaK1YcrEWJ
    t5XDOntxkxoC1n5u

    • Use a spudger to lift up the screen assembly ribbon cable flap, then remove the ribbon cable.

    • Screen Information: Model AM0310R-04 Lot # NHT18080052

    Thank you! Where can we buy the screen?

    Enrique -

    I didn't get any of the details on the screen when I tore it down, I will try to get the information from the original display when I can.

    Andrew S -

    Have you found any info on getting a replacement Screen? Some company must make theses

    Jim Beamed -

    Yes, this would be great to know. I can't afford to replace this a 4th for my Daughter, but I while heartedly believe in right to repair!!

    Rafael Rasillo -

    I'm not sure if you can find the displays anywhere. The only number (presumably model number) I could find on the screen was AM0310R-04 and the Lot Number NHT18080052.

    Andrew S -

  3. VNBxiKf5nKlulWJe

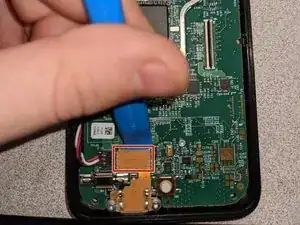

    • Using a spudger, unplug the Charging Port connector from the motherboard.

  4. gjHfRaCQiEnLAicj

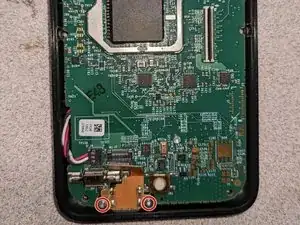

    • Remove the 2 silver Torx T5 screws holding the charging port down.

  5. TlZyLyTpCvvFC6Fl

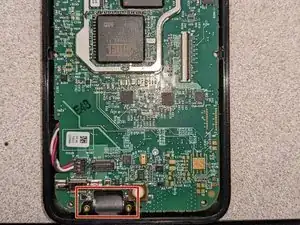

    • Remove the Charging Port Assembly from the motherboard.

  6. epTZCXX2LeJlmtjs

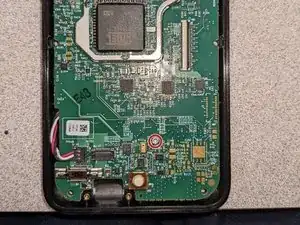

    • Remove the silver Torx T5 screw holding the motherboard down.

  7. ORXKXc6ySba4pyNO
    ORXKXc6ySba4pyNO
    AcG5QONQeFqP6oHw

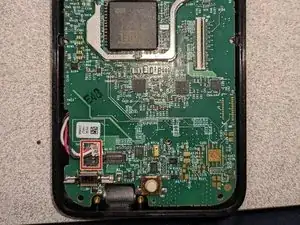

    • Using a spudger, carefully remove the battery connector on the left side of the motherboard.

  8. JbcWmZHiiCbSypOR

    • Using a spudger, carefully pry up the motherboard to remove it.

  9. WF5gIKdmOXrKIJM4

    • Using a spudger, carefully pry up and remove the speaker at the top.

    • Remove any remaining adhesive.

    • Put down new adhesive tape(be careful not to let it get in the way of the speaker).

    • Stick the new speaker down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
