DigMedia MusicStore Logic Board Replacement

Remove six Philips #2 screws from the bottom of the case.

Carefully fold the top and bottom open, revealing a ribbon cable connecting the two halves.

Unlock and disconnect the ribbon cable. Unlock by pulling the lock lever evenly on both sides, parallel to the board surface (not lift/pivot), in the direction of the ribbon cable.

When this ZIF (Zero Insertion Force) connector is properly unlocked, the ribbon cable should just fall right out of the socket (no need to pull with any strength).

Simply lift the RF shield off the unit.

When reinstalling, take note of the 6 fork-like interlocking clips around the edge of the shield, which should engage with the original positions.

Disconnect the digital audio connector (red) and the lid switch return connector (blue) from the logic board.

Unscrew four Philips #2 screws that secure the CD-ROM drive to the chassis.

Disconnect the large 40-pin IDE data connector and disconnect the 4-pin PC power connector from the CD-ROM drive.

Lift the CD-ROM drive out of the chassis.

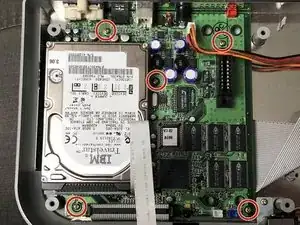

Remove 5 Philips #2 screws from the logic board (note: these are shorter than the previous screws)

Unplug the lid switch from the logic board. If the housing comes up with the connector (leaving only pins behind on the board), carefully separate the housing from the connector the two and push the housing back onto the pins in the original orientation.

Remove the logic board from the chassis.
