Do other videos you watch have sound? In that case it probably isn’t your speaker it is the microphone!

With this guide simple guide, you can work to replace the DigiLand DL718M microphone for sound clarity.

  1. ci1GUUKjpGGJTRXt
    • Remove back panel by wedging the iFixit opening tool on all four sides of the device.

  2. Gyhae2hobfoaLopq
    • Slide the small, circular microphone out of its slot in the bottom left corner of the device using an opening tool.

  3. g3ZFKTIsjHUwBwTI
    g3ZFKTIsjHUwBwTI
    YeFCaJpBLdmAKhf3

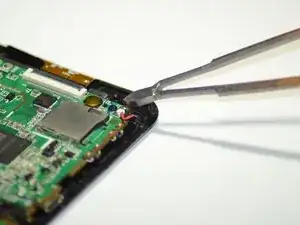

    • Desolder the two wired connection (red and black) between the microphone and motherboard from the motherboard.

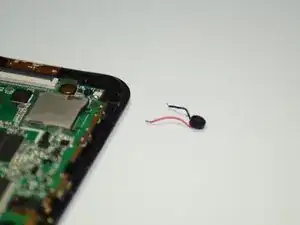

    • Remove the microphone from the tablet.

Abschluss

To reassemble your device, follow these instructions in reverse order.
