DigiLand DL8006 Motherboard Replacement

Geschrieben von: Alec Trela
  • Kommentare: 0
DigiLand DL8006 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

The DigiLand DL8006 is a modest and robust tablet. This guide will illustrate how to replace to the motherboard.

  1. ESaPdUSQlqLRnki6
    ESaPdUSQlqLRnki6
    Uapo2IajfGs1srLN

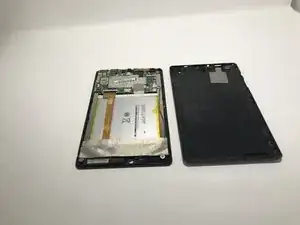

    • Remove the backing of the tablet to reveal the internal components using a plastic opening tool.

  2. RpSEmMxFDkju1rVI

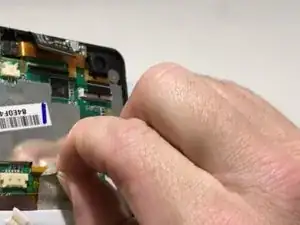

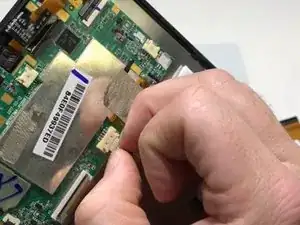

    • Peel back the metallic tape connecting the motherboard to the tablet body with your fingers.

  3. GnhnjueAAPnaQZyB
    GnhnjueAAPnaQZyB
    AEKKGsm6tEwGbNRA
    v6q5EEmrJxvYyjtT

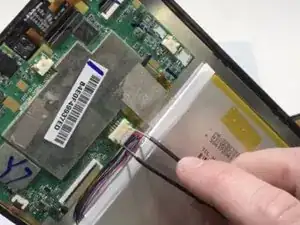

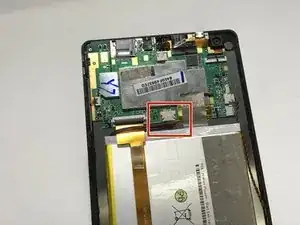

    • Remove the battery plug from the motherboard.

    • Fingers may be used to gently wiggle the connector out if it becomes stuck.

    • If battery wires are under the ribbon, Do Step #4 first.

  4. 1ILEKtEs2UrZcCpy
    1ILEKtEs2UrZcCpy
    FmM1bPjU4ui1eyuw

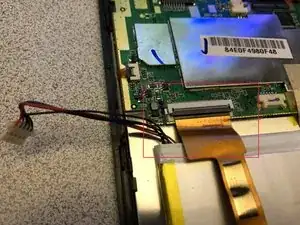

    • Opening the locking tab of the ZIF connector and carefully remove the upper section of the ribbon cable from the motherboard using tweezers.

  5. foOhgwtZYrMTvFEM
    foOhgwtZYrMTvFEM
    hLRs2Q1HmHw6k4xD

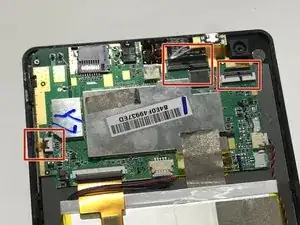

    • Disconnect the three remaining ribbons by opening the locking tabs of the ZIF connectors and gently pulling the cables out.

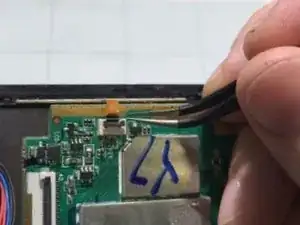

    • Use tweezers to manipulate the connectors and ribbons to prevent damage.

  6. xYN2Reu1ANQW2SbB
    xYN2Reu1ANQW2SbB
    1a64umIAytNxUJR1
    GZkx6UfLUvQpsnPO

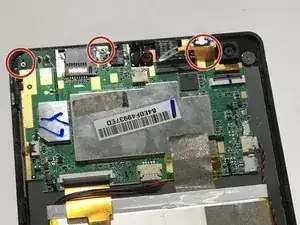

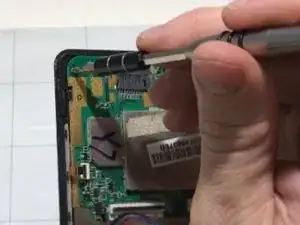

    • Remove the 3 mounting screws from the motherboard with a Phillips #0 screwdriver.

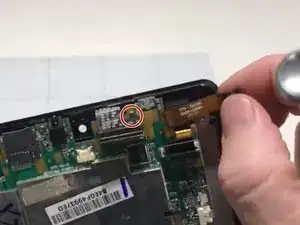

    • One of the screws is located under a ribbon. You will need to gently peel back the cable to access it (see image 3).

  7. 1pdfg1AdfWSILCFa

    • Gently remove the motherboard from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
