Hold the tablet in one hand (not your primary hand) so that the bottom edge of the tablet is facing you and the back of the tablet is facing up.
-

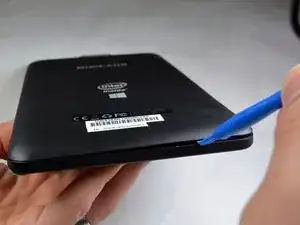

Using a blue plastic opening tool, gently insert the tool between the back panel and the main body.
-
Going around the edge of the tablet, gently pry open the back panel. As you go around, you will hear a click.
-
-
-

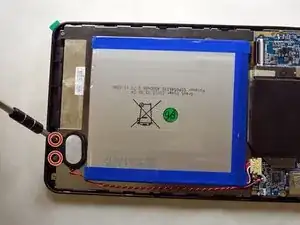

Remove the two JIS #000 screws that hold the speaker bracket in place. Be sure to place the screws in a safe place to avoid losing them.
-
Where the red and black wires connect to the motherboard, use a soldering iron to remove the defective speaker.
-
-
-
Using the black spudger, insert the flat edge between the battery and the metal plate. Continue until the battery is completely separated from the metal plate.
-
Once the battery is separated from the metal plate, it is safe to detach the wires from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
