This guide will show you the process of replacing your DigiLand Dl801W power button components. There are quite a few steps, so take your time and follow them carefully.
Note: Light soldering is required for successful repair of the power button components of the DigiLand Dl801W.
-
-
Hold the tablet in one hand (not your primary hand) so that the bottom edge of the tablet is facing you and the back of the tablet is facing up.
-

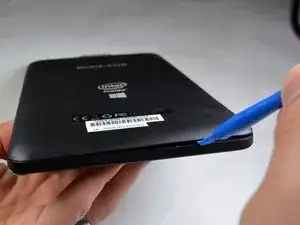

Using a blue plastic opening tool, gently insert the tool between the back panel and the main body.
-
Going around the edge of the tablet, gently pry open the back panel. As you go around, you will hear a click.
-
-
-

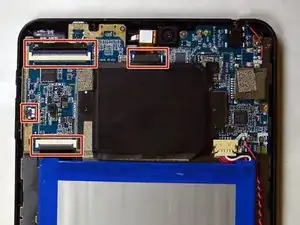

Using a spudger, lift the flaps securing the four ZIF connectors.
-

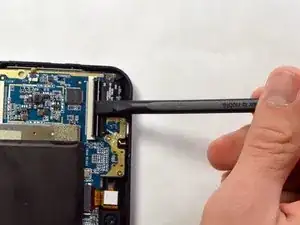

Use the pointed end of the spudger to disconnect the ribbon cables from their ZIF connectors.
-
-
-

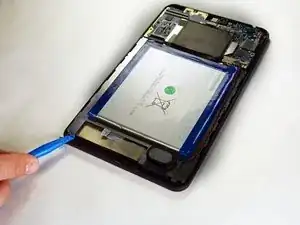

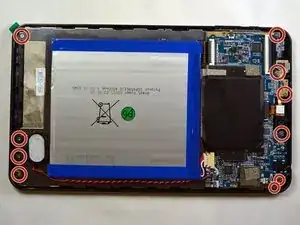

After removing all of the screws and disconnect any wires, use the blue plastic opening tool and starting from the bottom near the battery, carefully lift the back metal plate and motherboard out. Set aside in a secure place.
-
-
-

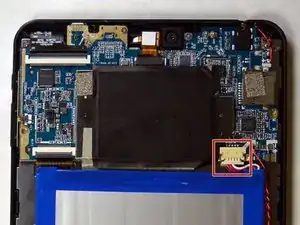

Disconnect battery terminal using the black spudger.
-
Once the battery is disconnected, the motherboard should lift right off of the metal back plate.
-

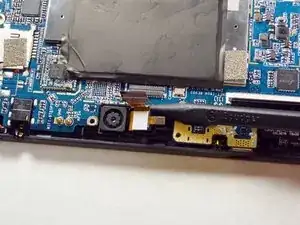

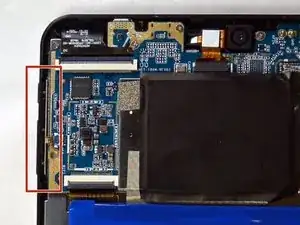

Now you will be able to remove the Power Button and Volume Assembly with a soldering iron.
-
To reassemble your device, follow these instructions in reverse order.
