Replacing parts of the chassis, such as knobs and hex nuts, should be an easy task.

If your pedal is not functioning properly, it is possible to replace some parts by removing and re-soldering them to the motherboard.

However, we recommend that you review your warranty, and contact DigiTech directly if you are experiencing problems with the ISSI (Dynamic RAM) or Audio DNA chips.

  1. KwSSVYyjwcaJyWSo
    KwSSVYyjwcaJyWSo
    UjerUX4OVu6mCZfF
    sOGuLYhQXBoKifIJ

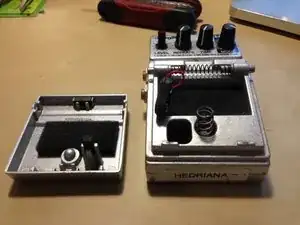

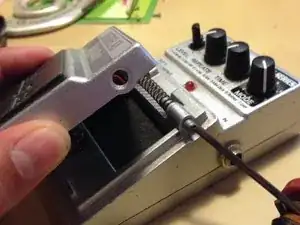

    • Push in the release pins with an Allen Wrench or the tip of an instrument cable to remove the pedal from the chassis.

  2. 1qHhkXaQJGpDRQTL
    1qHhkXaQJGpDRQTL
    aya5G42tpUiwMGhI

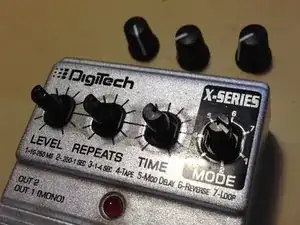

    • Remove knobs from the potentiometers by gripping firmly and pulling away from the chassis.

  3. E1d4AEPOKN5qTYTb
    E1d4AEPOKN5qTYTb
    DLMYcIpXSqQI5PeB
    UWaG1FPOfHBFwwbF
    • Turn the unit upside down, so that the top face of the pedal is facing away from you.

    • Use a 7/64 inch Allen Wrench to remove the 4 hex screws from the bottom of the chassis.

    • Remove the bottom of the chassis to reveal the back of the motherboard.

  4. ydWXqJRJwLZHXxop
    ydWXqJRJwLZHXxop
    UD2L5wqNgXMiCsSW

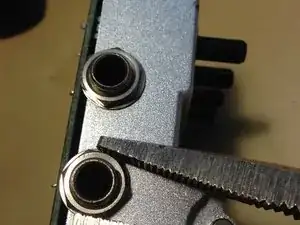

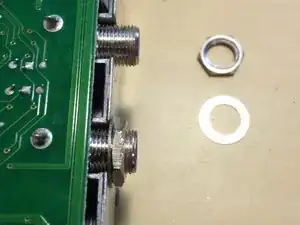

    • Use a Vice Grip or an Adjustable Crescent Wrench to remove the hex nuts and washers from the 3 line input/output jacks.

  5. IVurfDCdndx12R3P
    IVurfDCdndx12R3P
    UWEIoFp6AIF5RJZM

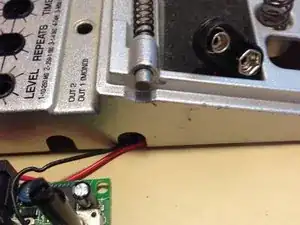

    • The motherboard can be easily removed from the chassis by lifting gently towards the potentiometers.

    • Remove only partially, ensuring not to tug too hard on the red and black wires connected to the 9V battery snap connector.

  6. DVbrqkoHgVDjRL3O
    DVbrqkoHgVDjRL3O
    vnoOWc6cKKAvDWn2

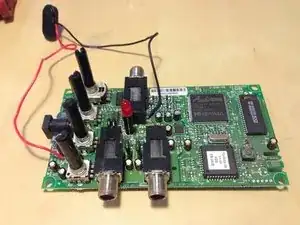

    • Remove the 9V battery snap connector from the battery casing before attempting to completely remove the motherboard from the chassis.

  7. U4j1qULh5oKOosfK

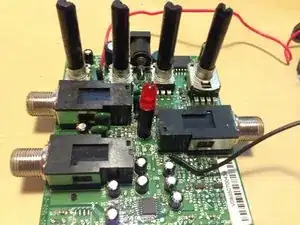

    • There are 4 potentiometers that stick out from the top of the motherboard toward the DC adapter port.

    • It is possible to replace these potentiometers by re-soldering their connection points on the back of the motherboard.

    • If you have resoldered the electrical connections and are sure the pots are still not functioning or "Noisy" and are destined for the e-trash, the safest way to remove without damaging the main board is to cut the the solder lugs one by one with a small wire cutter. Remove the complete pot mechanism—note: the values normally printed on the pot.

    • From the solder side: Heat the lugs one by one - With the soldered side facing up, as you heat each leg and it is molten - give the board a jolt and they will fall downward. Repeat one by one until they're all out.

    • They are hot, be careful of the surface they will fall onto.

    • The plated through holes for the component ALL need to be cleared of solder to enable the new component to be uniformly fitted through the holes

    • Plated through holes(PTH) can be de soldered with a hand held vacuum de solder tool or copper braided wick

    • Do the hard work now so you can just "plug and play" the new components when they arrive

  8. aLAQrPqiQMLQDYBB

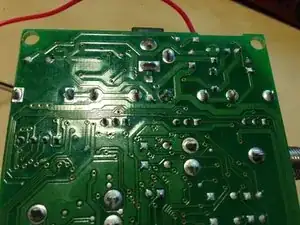

    • Turn the motherboard over, and you will notice how 1 potentiometer furthest to your left has 6 soldering connection points. This is the potentiometer for the Mode Knob, which allows you to toggle between different types of delay.

    • The other 3, from left to right, are your Time, Repeat, and Level potentiometers. These all have 5 soldering connection points.

  9. YR2fTMMDsEL6qVB1
    • There are 2 output jacks located on left of the motherboard. The top jack is your 2nd line out, and the bottom is your 1st (mono) line out.

    • The single 1/4 jack on the right of the motherboard is your line input.

  10. gXt3f12CJWtSSqpe
    gXt3f12CJWtSSqpe
    ujIHHacUKqN6hQlC

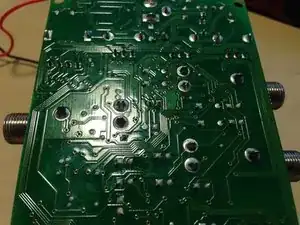

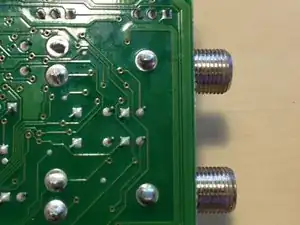

    • Turn the motherboard over, and you will notice how all three 1/4 inch jacks are secured by 3 soldering connection points each.

    • If you wish to replace any of these jacks, simply re-solder the connection to your replacement pieces at these points.

  11. nsOINVHnfmiBhxAd
    nsOINVHnfmiBhxAd
    FHfjGNAHoTJwCBmR

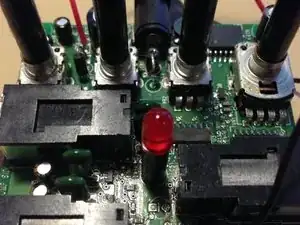

    • The red LED light, which signals whether your pedal is active or bypassing a signal, rises out of the central portion of the motherboard between the three 1/4 inch jacks.

    • The LED light is soldered at 2 small connection points at the back of the motherboard.

    • To replace this part, simply re-solder at the aforementioned connection points.

  12. XWAPrTUUFxQTtPut
    XWAPrTUUFxQTtPut
    CUZfS6rkkO5wCm1A

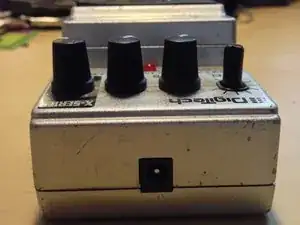

    • The DC Adapter Port is located at the top of the mother board in the center, just above the potentiometers.

  13. eIpimhKgWocaYNMw

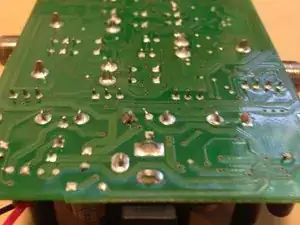

    • The DC Adapter Port is soldered at 3 large connection points in the back of the motherboard.

    • To replace this part, simply re-solder at these connection points.

  14. B2oCCITadKB2dPEH
    B2oCCITadKB2dPEH
    dLSLGEgBxUxSAXNE
    qH3oGrBufnyWEnMT

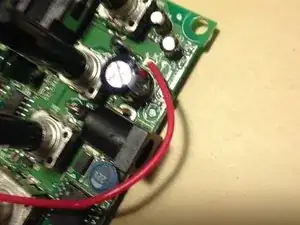

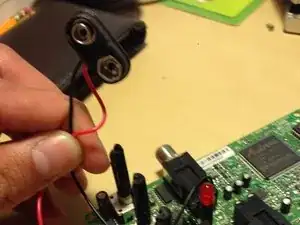

    • The 9V Battery Snap Connector is connected to motherboard via 2 wires: 1 red and 1 black.

    • The red wire is soldered to the left of the DC Adapter Port, and the black wire is soldered just below the single 1/4 inch line input jack.

    • To replace the 9V Battery Snap Connector, simply re-solder the connection in the back of the motherboard at these two points.

  15. Zsnma6iln33bPXqC
    Zsnma6iln33bPXqC
    xUoCeGbxI6TeBpL3

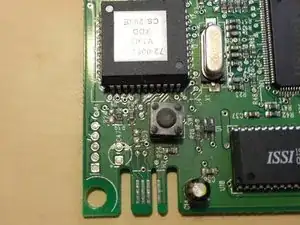

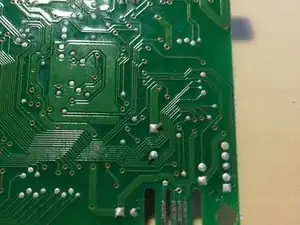

    • The Circuit Switch is a grey box with a circle on its top face, just left of the ISSI and Audio DNA chips.

    • The Circuit Switch is operated by a Pedal Switch Arm attached to the Pedal Cover.

    • This Switch is soldered at 2 small connection points in the back of the motherboard; re-solder at both connections to replace this part.

    Anyone have a part number or source for a replacement circuit switch?

    Adria Stembridge -

  16. vBQUurtAJ3HvjeWC

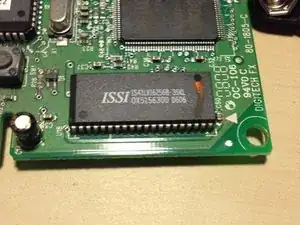

    • Delay pedals are generally built around a Dynamic RAM. This chip stores small amounts of info and instantly plays them back, creating the delay effect.

    • If your ISSI Chip is malfunctioning, we recommend that you review your warranty and contact DigiTech directly.

  17. N3pXUUpkprIbUDW2

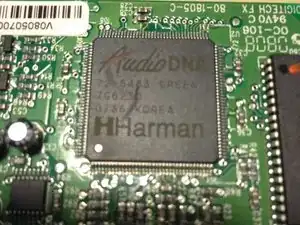

    • The Audio DNA is responsible for Digital Signal Processing (DSP), which drives the modeling and effect processing of the pedal.

    • If your Audio DNA Chip is malfunctioning, we recommend that you review your warranty and contact DigiTech directly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
