Digiland 10.1'' DL1016 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 Minuten

Einleitung

  1. OiyJifSDeTsJQt1A
    OiyJifSDeTsJQt1A
    CgUESqqJ3nSKZvUv

    • Use an opening pick and an opening tool to pry the backing off the back of the tablet.

    • You may need some force when doing this and if needed use a metal spudger.

  2. fD23HCADMRFHCNHD
    fD23HCADMRFHCNHD
    abt6QZGSIRqVCgMk

    • Gently lift the backing off.

  3. brAVONSnhnNSWiGJ
    brAVONSnhnNSWiGJ
    MTNCsyrXNdvkYTVg
    TWa3VdfDKK5F1DZp

    • Pull back the black flaps on the ZIF cable connectors.

    • Pull the ribbon cables out of the connectors.

  4. FqBAsXnBCIILxkcA
    FqBAsXnBCIILxkcA
    OMXIkNMxDDxRE4Dy

    • Use an ESD safe pryer to lift the battery up.

    • There is glue that holds the battery down, so carefully pry it open. You may need to use some force.

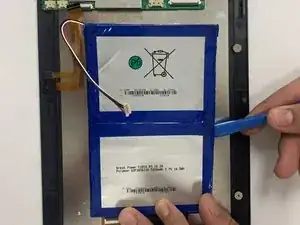

  5. VuQQDxexIcxPBPnB

    • Once you remove the battery, simply replace the battery with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
