Digiland 10.1'' DL1016 Speakers Replacement

Geschrieben von: Jose Luis Rodriguez
  • Kommentare: 0
Digiland 10.1'' DL1016 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

Speaker volume is low or audio is distorted are symptoms of a faulty speaker. Please review our troubleshooting page Digiland 10.1'' DL1016 Troubleshooting before proceeding to the replacement. Once you have determined your symptoms and are certain you need a speaker replacement, continue on with this guide.

This guide will help you replace the speaker of a Digiland 10.1” DL1016 device

  1. OiyJifSDeTsJQt1A
    OiyJifSDeTsJQt1A
    CgUESqqJ3nSKZvUv

    • Use an opening pick and an opening tool to pry the backing off the back of the tablet.

    • You may need some force when doing this and if needed use a metal spudger.

  2. fD23HCADMRFHCNHD
    fD23HCADMRFHCNHD
    abt6QZGSIRqVCgMk

    • Gently lift the backing off.

  3. brAVONSnhnNSWiGJ
    brAVONSnhnNSWiGJ
    MTNCsyrXNdvkYTVg
    TWa3VdfDKK5F1DZp

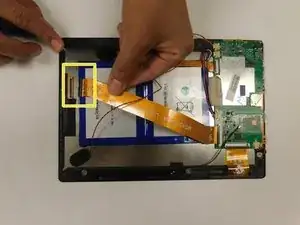

    • Pull back the black flaps on the ZIF cable connectors.

    • Pull the ribbon cables out of the connectors.

  4. FqBAsXnBCIILxkcA
    FqBAsXnBCIILxkcA
    OMXIkNMxDDxRE4Dy

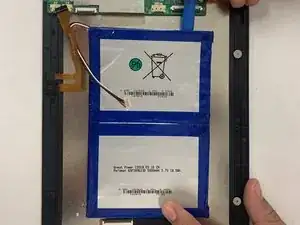

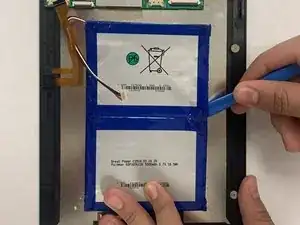

    • Use an ESD safe pryer to lift the battery up.

    • There is glue that holds the battery down, so carefully pry it open. You may need to use some force.

  5. tTx25JuJMrbOiOrs
    tTx25JuJMrbOiOrs
    6AXqRHSsEon2aOTc
    WM3xPVEsTEwHC11c

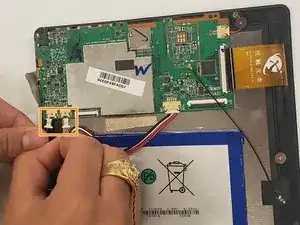

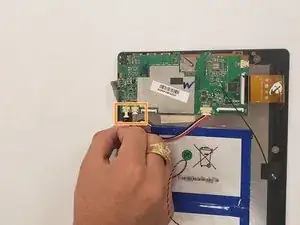

    • The speakers are marked in red.

    • Disconnect the speaker connections.

    • Remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
