Einleitung

Does your Digital2 tablet battery deplete faster than it used to? Is the battery overheating or causing issues with performance? If so, it may be time to change it. This guide will take you through the necessary steps to replace the battery. Soldering and battery removal will be required.

  1. Ke1Dm3C126vlk5wW
    Ke1Dm3C126vlk5wW
    4uTRVCHI4PkyeC6f
    FBdiM4lbyjr1HpbQ

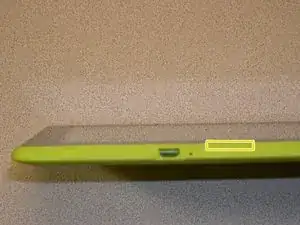

    • Insert the prying tool into the crack between the case and the display border found to the right of the charging port.

    • Continue to pry around the case.

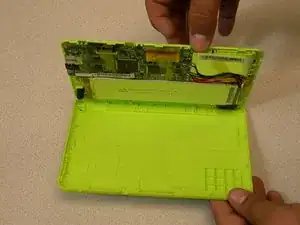

    • After prying all around the device, separate the back cover from the display.

  2. pHt3OpvlHlHrEK3v
    pHt3OpvlHlHrEK3v
    EK4luLNToKg4o5pL
    hTcnZlbTljOWfiTV

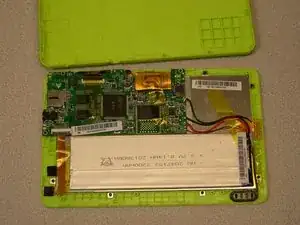

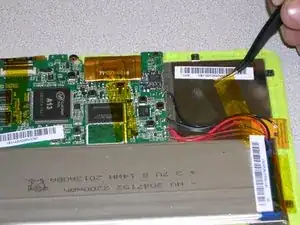

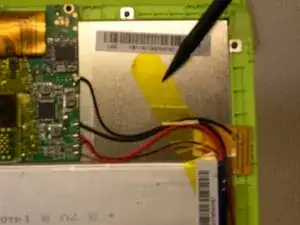

    • Above the battery, peel back the yellow tape so the battery cables are not held in place.

    • Do not completely remove the tape.

  3. QC1rRTk6Eo3VtDec
    QC1rRTk6Eo3VtDec
    YQcACdJ3R53N1cxg

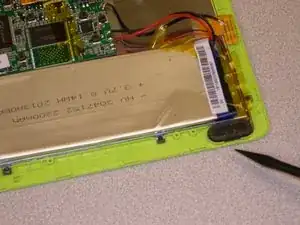

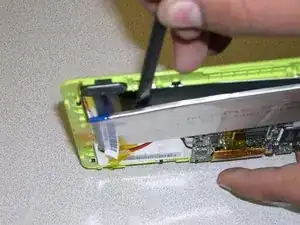

    • Use the spudger to pry underneath the battery and remove it.

  4. VyUlr5du3wrLSKRV
    • Use the soldering tool to remove the cables from the circuit board.

    • Solder the new battery cables onto the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
