This repair is necessary if the motherboard of the Digital2 D2-912 becomes defective at any point. Repairing the motherboard will help overall performance, as it establishes a connection from the hardware of the device to the processor. Special skills are not required to complete this repair. This manual highlights the necessary steps and tools for successful completion.
-
-
Wedge the opening tool in the space between the back and the front of the tablet.
-
Carefully work your way around the perimeter, wedging the opening tool between the front and back of the tablet.
-
When the back of the tablet is mostly detached from the front, carefully pull it away completely.
-
-
-

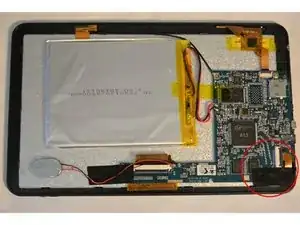

Detach the capacitive touch controller from the motherboard.
-
Carefully pry the narrow black connector upward to release the ribbon.
-
Remove the ribbon from the connector.
-
-
-
Locate the camera found in the image.
-
Carefully pry the black connector upward to release ribbon.
-
Remove the black tape to release the camera from the motherboard.
-
Remove the ribbon from the connector.
-
Remove and replace the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
