Einleitung
This guide will help users to replace buttons on top of the Digitech XC-5206 speaker system, including: volume controls, power button, and Bluetooth button. Please refer to troubleshooting page before beginning replacement guide steps.
Werkzeuge
-
-

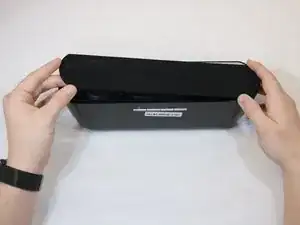

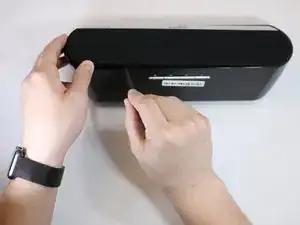

Remove front panel by forcefully placing the flat edge of the spudger in between panel and plastic. Angle spudger and use fingers to pry panel off.
-
-
-

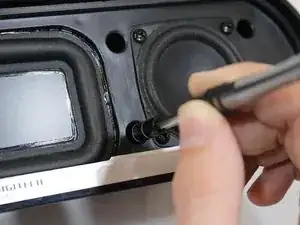

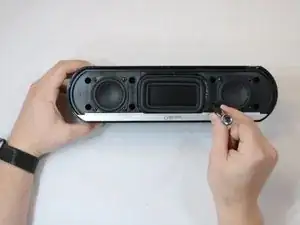

Unscrew all eight 14mm screws closest to the edges of the speaker by spinning a size PH2 screwdriver in a counterclockwise motion.
-

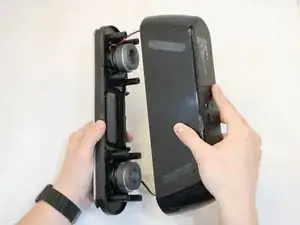

Dislodge face by holding speaker face down. Gently shake or tap front against table to fully remove face.
-
OR grab ahold of the silver tab to pull the speaker face out. This may require force.
-
-
-

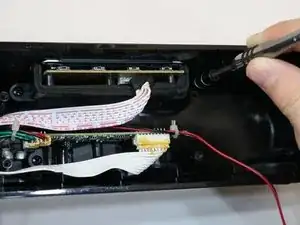

Unscrew upper panel two 10 mm screws spinning a size PH2 screwdriver in a counterclockwise motion.
-
-
-

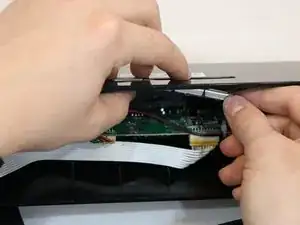

Remove circuit board by pulling straight upwards out of slot.
-

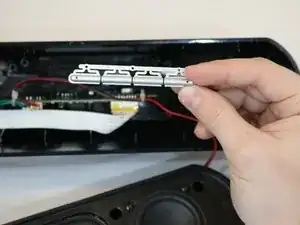

Remove plastic buttons by gently pushing buttons from top of speaker and using other hand to pull from bottom.
-
To reassemble your device, follow these instructions in reverse order.
