Einleitung

Dim or black out the annoying blue LED on a Hesh 2 Wireless headset.

  1. q3poR5v1Ej12DsRV
    • Remove the cushion from both speakers.

  2. vRTpVEZ3YIEmbOkf
    vRTpVEZ3YIEmbOkf
    JIiAgvLmxkYOWgAb

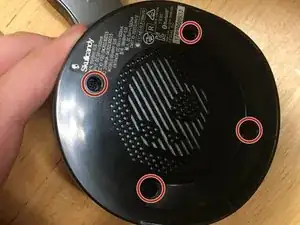

    • On the right speaker, remove the 4 screws shown.

    • Remove the plastic plate , but be careful not to damage the speaker wires.

  3. nGADWuBtKE1Kuvvv

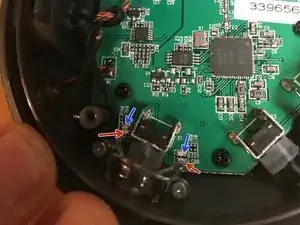

    • On the bottom left of the board, near the power button, are LED0 through LED3. The odd numbered LEDs are blue, and the even numbered LEDs are red.

    • With the sharpie, carefully mark the tops of the LEDs. Alternatively, if you want to black out the lights entirely, use very small pieces of electrical tape to cover them.

    • It's a good idea to verify the color of each LED by powering on the headset while it's open.

Abschluss

To reassemble your device, follow these instructions in reverse order.
