Dirt Devil Infinity VS8 Turbo Disassembly

Geschrieben von: MarW
  • Kommentare: 10
Dirt Devil Infinity VS8 Turbo Disassembly

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. lMeoA6FVAPOqLXF3

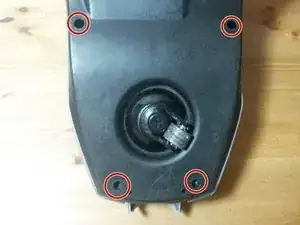

    • Remove 4 screws on the bottom side using Philips screwdriver

  2. EZgy2CiKtZXUOTaK
    EZgy2CiKtZXUOTaK
    NmTYWKBkAfle1EeB

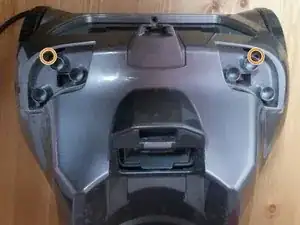

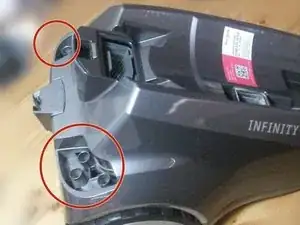

    • Remove 2 buttons by levering them using slot screwdriver.

    • Remove 2 screws.

  3. bwNcoScPS1pQHBJB
    bwNcoScPS1pQHBJB
    fR6GOsiRtGklgZDk

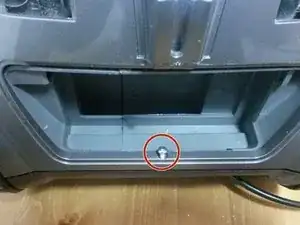

    • Remove last spanner screw, maybe you can do it using spanner head (pig nose) screwdriver.

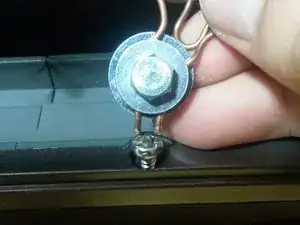

    • I have made special key to turn it using piece of 1mm wire and screw.

    That's a spanner screw. Mostly used to avoid, uh, tampering.

    Wouter van Os -

  4. BoACX3njCXIbLP1I
    BoACX3njCXIbLP1I
    Kwb1EAVONjhZkUYJ
    YudPRVtrdtW35L2V

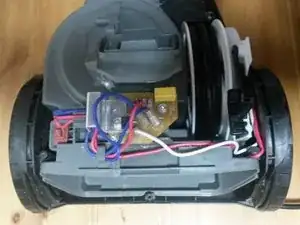

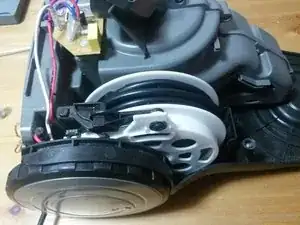

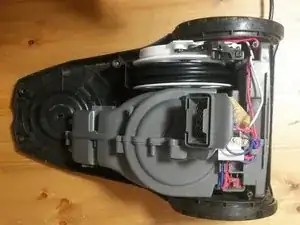

    • Now you can see how it looks inside, get access to engine or cable roller.

    Nach Schritt 3 geht es nicht weiter. Wie bekomme ich das Gehäuseoberteil ab?

    Felix Holzhausen -

Abschluss

To reassemble your device, follow these instructions in reverse order.
