Disassembling Axis 214 PTZ Camera

Geschrieben von: lukahlastec
  • Kommentare: 0
Disassembling Axis 214 PTZ Camera

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

How to disassemble Axis 214 PTZ camera.

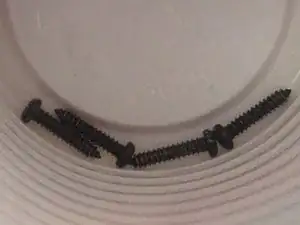

  1. vBWWJCsZxIRUuKSy
    vBWWJCsZxIRUuKSy
    rfZvAUQJnCaOWyLo

    • 4 screws

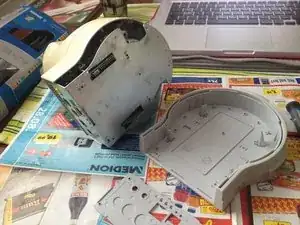

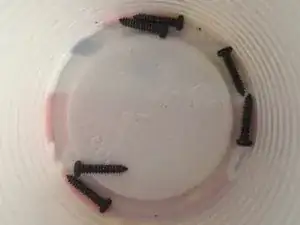

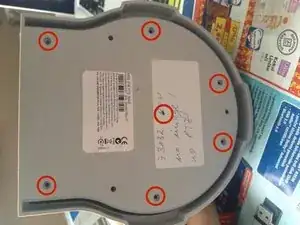

  2. jyMatk3LNmiXBN1F
    jyMatk3LNmiXBN1F
    iWnBWowWYnQy24CQ
    HvMRyXyxF6CqGXMG

    • 7 screws

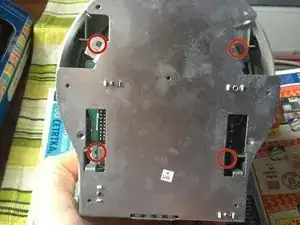

  3. QSZMBZV5FqC5OJPu
    QSZMBZV5FqC5OJPu
    VVkxJy1FeiAI3sUP
    wmfKZFaJskuxRfXv

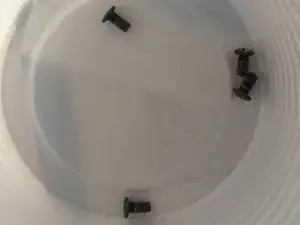

    • Remove (4) Phillips screws.

    • Carefully disconnect the ribbon connector.

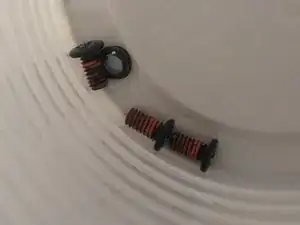

  4. LdRnGQmJj3hRXj1S
    LdRnGQmJj3hRXj1S
    fnxJNIb4yJK1VjBt
    FyxPrKC2LTYiejP4

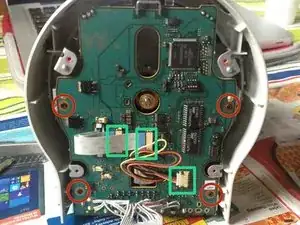

    • Remove (4) Phillips screws.

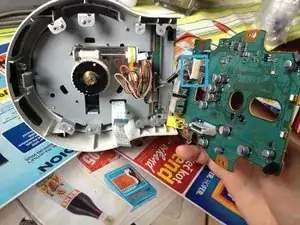

    • If replacing the logic board, remove (2) cables at the connectors.

    • At the underside of the logic board, disconnect the connector.

  5. TlolpnAoyOTOD3pf
    TlolpnAoyOTOD3pf
    oDPyOIZGdYaNaZrj
    cfFjCQhBGBSBotX2

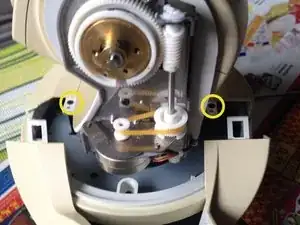

    • Gently press back the plastic clip at both sides.

    • Remove 2 screws.

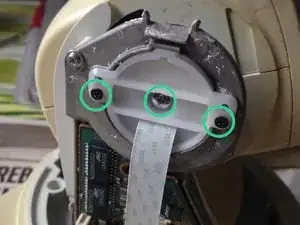

    • Remove (3) Phillip screws.

  6. xTwlxS3J3nGTSdTX
    xTwlxS3J3nGTSdTX
    Mm1NWpmUheZ3kvTY

    • Remove (4) Phillips screws.

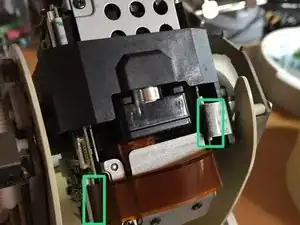

    • Carefully disconnect ribbon and flex cables.

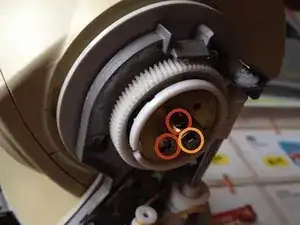

  7. hN3QA4dHOAiFa1wX

    • Remove (2) Phillip screws.

    • Remove (1) protective clip.

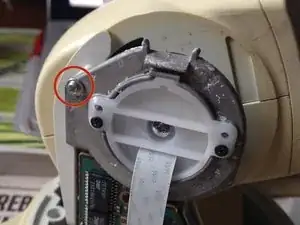

  8. CNOkA1HeSUFOuCrq
    CNOkA1HeSUFOuCrq
    HkmA1pMPildaOVLW

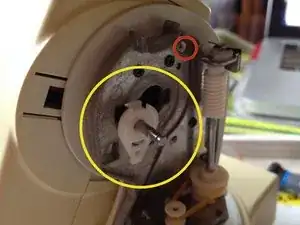

    • Remove 2 screws one on each side.

    • Turn the latch mechanism to the right.

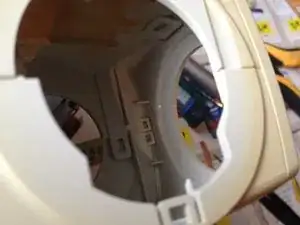

  9. wfi1KN3vSGNJvVCE
    wfi1KN3vSGNJvVCE
    GPTqd1bTv4yH1nZf
    LvTPClxsGYaBytI1

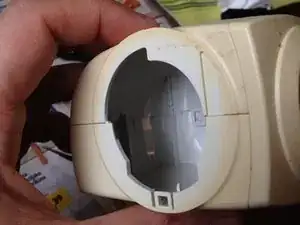

    • It is difficult to disassemble.

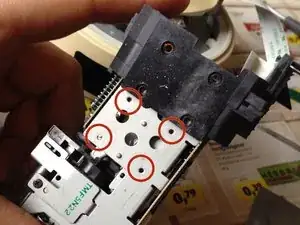

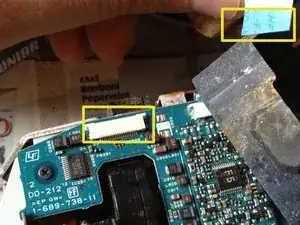

  10. rupcEllWSpZUbMHN
    rupcEllWSpZUbMHN
    a2JldgIVJ5MhxYis

    • Remove (4) recessed screws.

    • Disconnect flat Ribbon Cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
