Disassembling Breville BKC600XL Coffee Brewer Head

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide explains how to disassemble the Breville BKC600XL coffee brewer head.

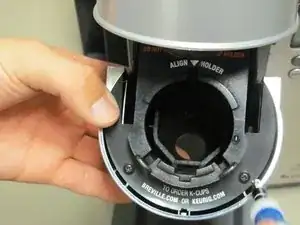

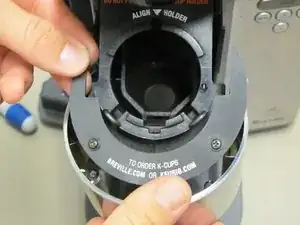

  1. SSaKTFTyPTLBkpkR
    SSaKTFTyPTLBkpkR
    bQjGmEFJUhiWWEUD
    a4sVoMJ5kEs4rsYR

    • Remove the two 12mm black Phillips screws using a Phillips #0 screwdriver.

    • Reminder for reassembly; This bottom piece is first to be screwed back on.

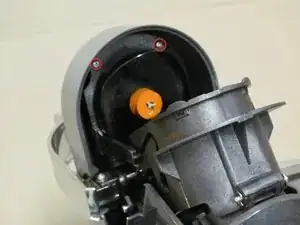

  2. IBxT4a2fuUeL4G1X

    • Remove the two 12mm Phillips screws using a Phillips #0 screwdriver.

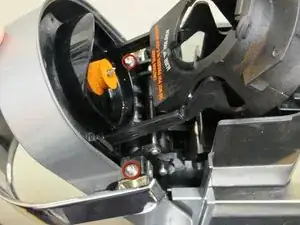

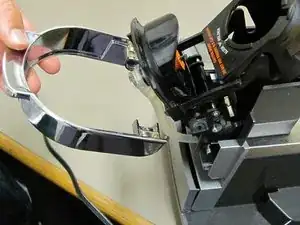

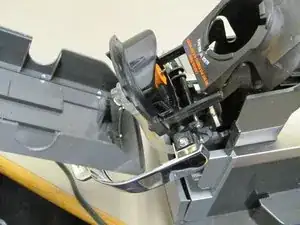

  3. aShEWGgUAe5OrvWh
    aShEWGgUAe5OrvWh
    LeLZDj2PbhvfPMei
    VRBcdl3TJFdRXhTP

    • Remove the grey plastic casing.

    • Remove the two 12mm hexagonal screws using a 1.5mm hex screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
