Disassembling Canon PowerShot SD800 IS Front Cover

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

1 Minute

Einleitung

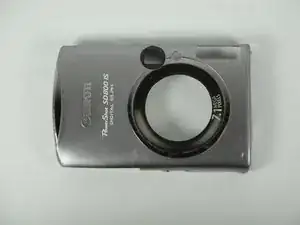

Removing the front cover allows access to the flash assembly.

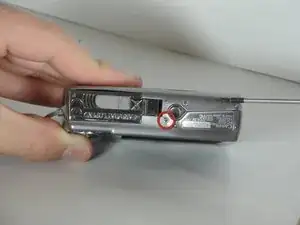

  1. P5Ym2yF2EdkHTkZQ

    • Remove one 2.25mm screw on the bottom.

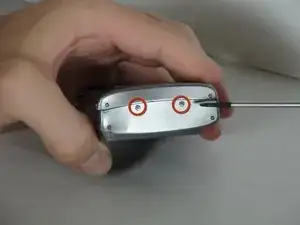

  2. F4NsiYhWwUZoGcrV

    • Remove two 2.25mm screws on the right side looking from the front.

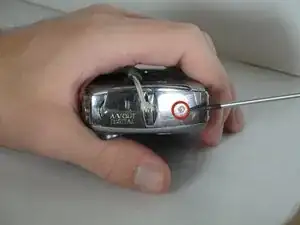

  3. arUk4uYptBuACm4x

    • Remove one 4.7mm screw on the side with the AV output.

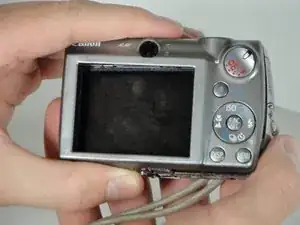

  4. TgjXlNeHBJdUFUOR

    • Pull off the back cover.

    • The back cover tends to stick in the top corner (near the mode dial) due to a metal clip. Jiggle the cover side to side as you pull it out.

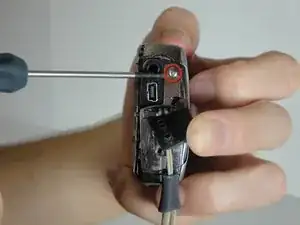

  5. GRabHpSYhWt5iWqu

    • Remove the 3.9mm screw in the AV housing on the left side from the front of the camera.

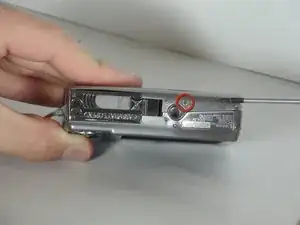

  6. opR3Z2N1W1TOtdyD

    • Remove one 2.25mm screw on the bottom of the camera.

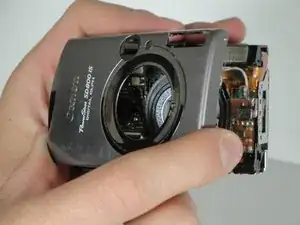

  7. VlV1Y51nKToCB5t4

    • Pull off the front cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
