Disassembling Canon PowerShot SD800 IS LCD Display

Geschrieben von: Jeremy Rabaino
  • Kommentare: 0
Disassembling Canon PowerShot SD800 IS LCD Display

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

Remove the back cover before removing LCD display.

  1. P5Ym2yF2EdkHTkZQ

    • Remove one 2.25mm screw on the bottom.

  2. F4NsiYhWwUZoGcrV

    • Remove two 2.25mm screws on the right side looking from the front.

  3. arUk4uYptBuACm4x

    • Remove one 4.7mm screw on the side with the AV output.

  4. TgjXlNeHBJdUFUOR

    • Pull off the back cover.

    • The back cover tends to stick in the top corner (near the mode dial) due to a metal clip. Jiggle the cover side to side as you pull it out.

  5. RCEbDYoIYUJ1QSwL

    • Remove 2 2.4mm screws on bottom.

  6. yJLVLTgxGjjjjPt3

    • Follow the small data cable to where it connects to the camera.

    • Lift the back white portion to unlock the cable.

    • The cable should easily slide out.

    • The connector is very fragile. Use caution when lifting the lock.

  7. LFTTOvhBUWHBinP6

    • Gently lift LCD display off.

    • There will be two data cables still attached to the camera. Do not break them.

    • There may be a loose strip of metal along the inner side of the LCD display for a secure fit.

  8. eojCiXbNKJo6KSjw

    • Follow the larger cable to where it connects to the camera.

    • Lift the front black portion of the connector to unlock the data cable.

    • The cable should easily slide out.

    • The connector is very fragile. Use caution when lifting the lock.

  9. IQny5wOj5y5TVORh

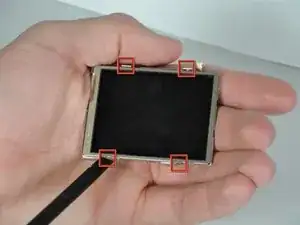

    • Pry the LCD display out from the four metal clamps.

  10. UFyNJjJZH1QhMWM6

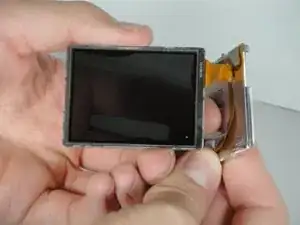

    • To remove the LCD, peel the larger data cable off from the frame.

    • The LCD is glued by its data cable to the back of the LCD frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
