Disassembling Circo Monkey Alarm Clock Clock Face

Geschrieben von: Devin Gooding
  • Kommentare: 0
Disassembling Circo Monkey Alarm Clock Clock Face

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

This is a disassembly guide for the face of the clock, useful in the case that the face requires: maintenance, replacement, or access to the interior parts.

  1. yFcMO3LL3jSjWpO5
    yFcMO3LL3jSjWpO5
    PfVKyDMSZnjqu3Lp
    E1gNRkk6PBHZHrey

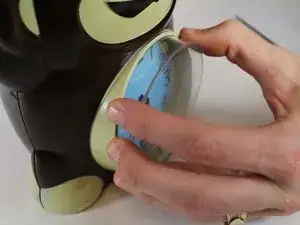

    • Grasp the plastic cover and carefully pull straight back so that the clock cover dislodges from its housing.

    • If any additional assistance is required for this step, it is recommended to use the plastic opening tool to help pry the edges of the cover simultaneously or a suction cup if you cannot grip the rim.

  2. UxIod12VC2QfUH5N

    • Using your fingers, grasp the point where the hands of the clock meet in the center and pull straight back until they dislodge from the motor.

    • Be sure that you remove all three hands as well as the pin that connects them in this one step. This component should come out as a single piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
