Disassembling DeWalt D28110 Back Panel Disassembly

Geschrieben von: Kean Wee
  • Kommentare: 0
Disassembling DeWalt D28110 Back Panel Disassembly

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Prerequisite Only

  1. yk6cLV1GvMwSpPKt

    • Using the T-15 screwdriver, remove the four 22-mm torx screws holding the back panel in place.

    • Unplug the grinder before any disassembly.

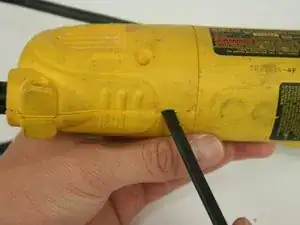

  2. CYZJCMyBYb2URwWQ

    • Use the edge of the spudger to loosen and remove the back panel.

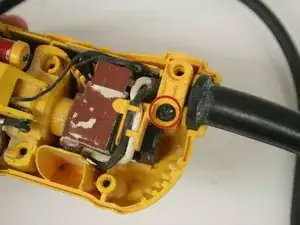

  3. PLZAr4uLEpTJuGXf

    • Remove the single 20-mm torx screw holding the rear panel in place.

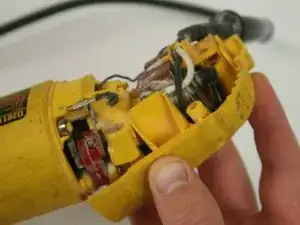

  4. HLHKoxSo4jLTAEJB

    • Pull back the rear side of the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
