Einleitung
We'll remove the top cover from the device, allowing the other components to be seen and replaced or repaired.
Werkzeuge
-
-
Flip your device over so the bottom panel is facing up.
-

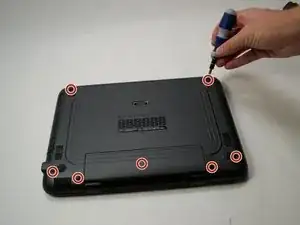

To remove the old battery from the laptop, first unscrew the eight screws (size M2.5x8) from the bottom with a Phillips #0 screwdriver, this will allow the removal of the keyboard and front panel.
-
-
-

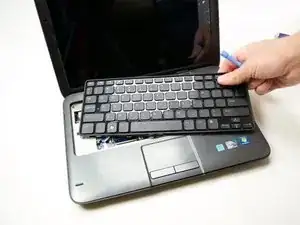

Flip the device over again and open the laptop so that you have access to the keyboard. There are hooks on the bottom of the keyboard, but gently pulling the keyboard towards the monitor will allow it to pull out easily. Be sure to unclamp the ribbon cable. Remove the three screws under the keyboard.
-

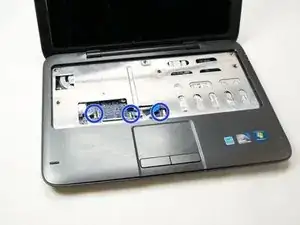

Remove the three plastic Keyboard and trackpad connectors (these are labeled with a blue circle on the second photograph).
-
-
-

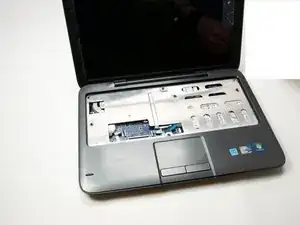

Next, remove the top cover from the device using the plastic opening tools. It snaps in on the sides, so don't worry if you hear it unsnapping; it's not breaking.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Can I get a broken screen

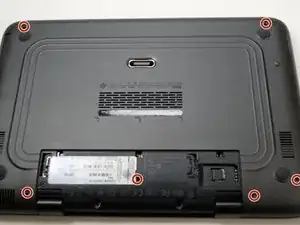

There are seven screws, not eight. You need to slide away to cover to get to the seventh screw near the Windows 7 label.
There are two more screws (in the bottom of the picture) that need to be removed before the top cover can be removed.
