Disassembling Dell Inspiron One 2020 Back Cover

Geschrieben von: Tyler
  • Kommentare: 1
Disassembling Dell Inspiron One 2020 Back Cover

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

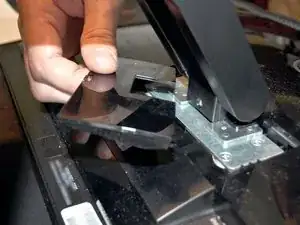

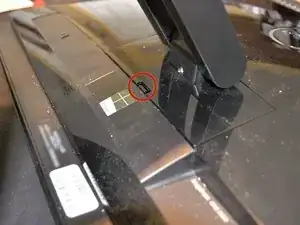

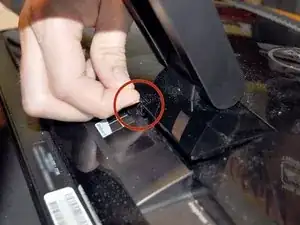

  1. ga1g5gxVjCDeqdrA
    ga1g5gxVjCDeqdrA
    dKJ3K4JdOMqiwi6D
    615hDwWLs6fWUUaj

    • Place the all in one computer face down on a soft, clean surface to avoid scratching the front.

    • Press the tab on the stand cover and lift up.

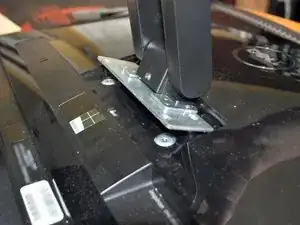

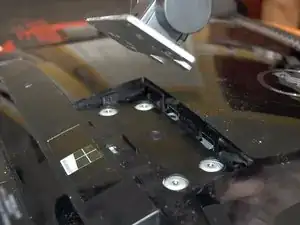

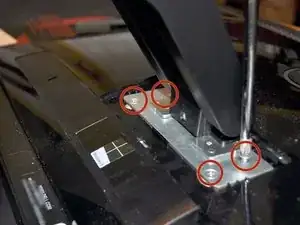

  2. bGHifCJCEUmgjV4g
    bGHifCJCEUmgjV4g
    NDetKhAjPLyIMsB4
    WTNsUqYLHQwQA15k

    • Remove the four phillips screws that attach the stand to the computer.

    • Tilt the stand up and out.

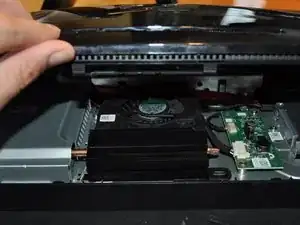

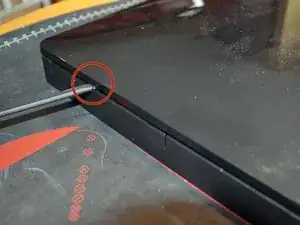

  3. yRLtQMFyxK2rDIwt
    yRLtQMFyxK2rDIwt
    tBQwInOZbvoNSpaA
    rjhZ4T2EmJPG4oID

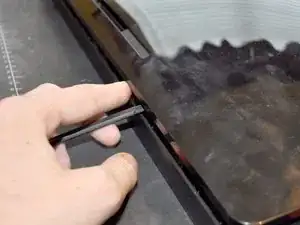

    • Starting from the optical drive, pry the back cover up with a plastic spudger.

    • The cover is held in place by fragile plastic clips. Careful to not break them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
