Disassembling Epson PPC650 Replacing Flash

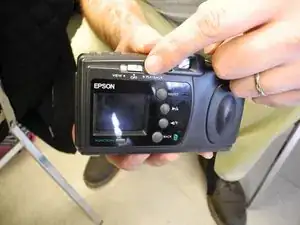

Make sure the camera is turned off here.

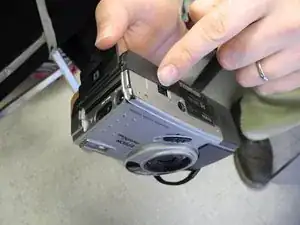

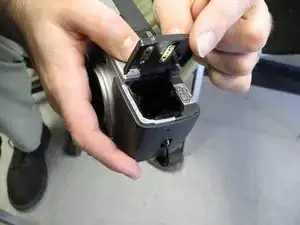

Remove batteries from the battery compartment located on the bottom of the camera

Remove SD card for the card reader compartment located on the flat side (left side) of the camera

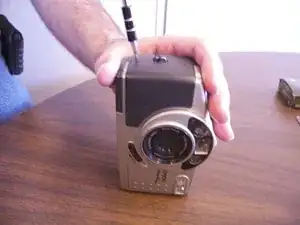

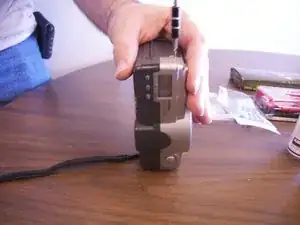

Remove 2 screws on the rounded side of the camera wisdom here.

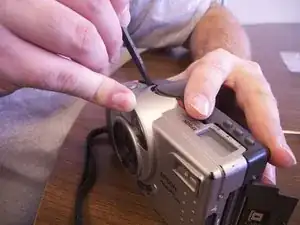

Remove 3 screws on the flat side of the camera

All silver screws go into the side of the camera that is silver

All black screws go into the side of the camera that is black

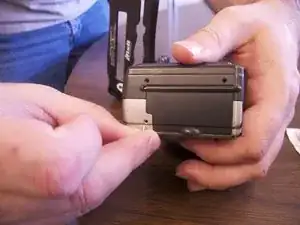

Remove 4 screws from the bottom of the camera

All silver screws go into the side of the camera that is silver

All black screws go into the side of the camera that is black

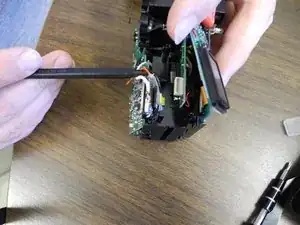

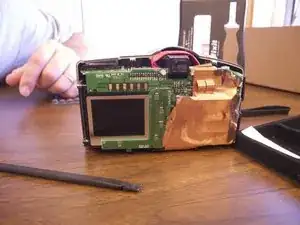

Separate the front and back pieces of the cameras plastic casing using a spudgerm here.

WARNING: When pulling the front plastic casing, be careful of the wire that are connected to the aperture control

Use minimal force so that the plastic casing does not break

When separating the small silver sliding indicator for view/off/playback may fall out

The plastic viewing window located on the top of the camera may also become lose and fall out

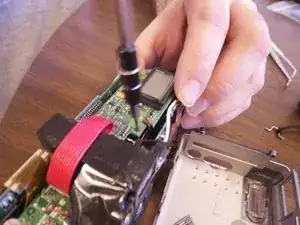

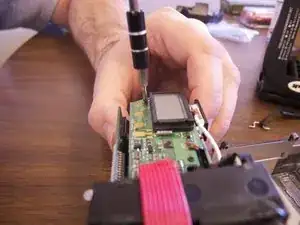

Optional: Remove two black screws from top of camera on the flash side for more working space.

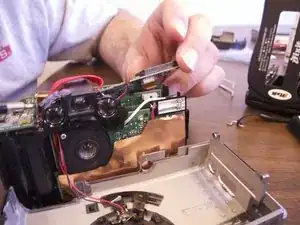

Remove clear rubber band holding flash in line with wiring.
