Einleitung

  1. GvPyPM1v1kiCISwy
    GvPyPM1v1kiCISwy
    sEwylHOtEfWXmMBG
    RCQcOFRjskbxbtpH
    • To remove the battery from the casing, grab the front panel and back panel with opposite hands (as shown). The back panel is the same as the battery.

    • With your index finger, push in the button on the bottom of the battery to release it.

    • Pull the battery away from the phone.

  2. extWxF1IsGFL2I3R
    extWxF1IsGFL2I3R
    x1CORKDSsioN3Nvw
    W6KHdUFigeGeEpCJ
    • After removing the battery, the front phone casing becomes accessible.

    • Locate the two star-shaped T6 screws on the bottom end of the rear of the phone, underneath the battery, as indicated by the red circles.

    • Remove these two screws using the Torx T6 Screwdriver.

  3. V4jVNDJsOP5oJIsD
    V4jVNDJsOP5oJIsD
    GhLCUbf4X115dmXL
    VHS2sQgw6cPB2SWU
    • Locate the top two U-shaped screws on the back of the phone, as shown by the red circles.

    • Remove these two screws with a SP 2.6 screw driver.

    • Note: Remove gray plastic grommets with screws.

  4. aprWRtTmxAll4k6n
    aprWRtTmxAll4k6n
    SMjHuVAEDLiMMPbF
    • Grab opposite panels of the phone casing and carefully open and pull apart the phone, as shown in the image.

    • Note: Be careful not to damage the circuit board and components as you as open the casing.

  5. lT1MCUPUwof5XKOL
    lT1MCUPUwof5XKOL
    DsMJImayK1mJoMKR
    • After removing the battery casing and taking apart the phone casing, the keypad is held in with a plastic skeleton structure as shown.

  6. jE22ntTbEuvP6MOK
    jE22ntTbEuvP6MOK
    FDPHF36p4QjXSrSZ
    G4btBcdm3voymVLX
    • To remove the plastic skeleton structure, locate the tab at the top of the phone near the LCD display screen.

    • Carefully remove the skeleton by holding on the front phone casing with one hand and pull tab with your index finger while having your thumb at the bottom of the phone as shown.

  7. QDE45FIwTZflonYQ
    QDE45FIwTZflonYQ
    gjHTtCTGBsRfSGWu

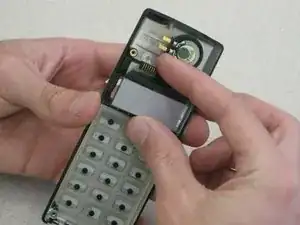

    • After removing the plastic support skeleton, the LCD Display is accessible and easily removed.

    • Locate the screen at the top of the phone as shown.

  8. I31Efju3uWWIEVD5
    I31Efju3uWWIEVD5
    CfTP3mo2SGLI6SMH
    Cj3kxNgjT6DrqJSD

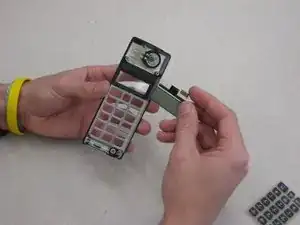

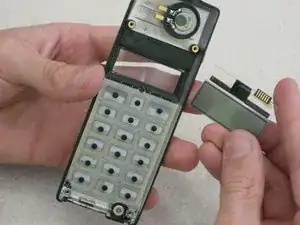

    • Using your index finger and thumb, carefully remove LCD display screen. You may need to use a plastic pry bar to get this started.

Abschluss

To reassemble your device, follow these instructions in reverse order.
