This guide will instruct camera owners how to take off the outer casing and how to access the inside components to repair and/or replace broken parts.
Werkzeuge
-
-

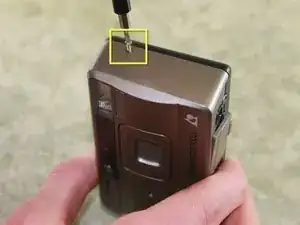

Locate and remove two 6.4mm screws on the bottom of the camera with a Phillips #00 screwdriver.
-
-
-

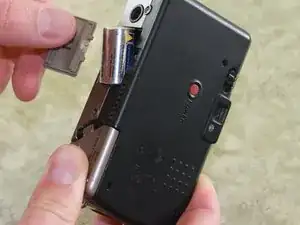

Locate the latch on the battery door marked by the word "BATT." Use your finger to pry it open.
-
-
-

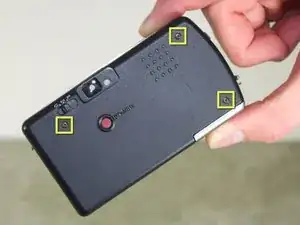

Locate and remove three black 3.80mm screws on the back of the camera with the Phillips #00 screwdriver.
-
-
-
Locate and remove the 6.4mm screws located on either side of the camera with a Phillips #00 screwdriver.
-
-
-
Locate the film door latch located on the side of the camera.
-

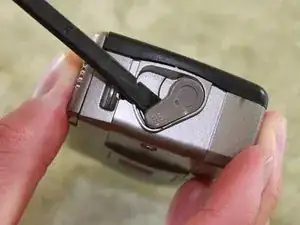

Insert the spudger under the latch.
-
Pry the latch upward, applying force perpendicular to the camera.
-
-
-

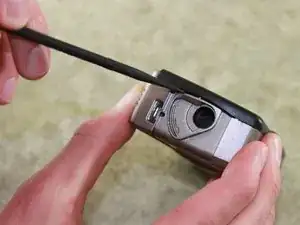

Insert the flat edge of the spudger between the gold front casing and the black back casing.
-
Pry the spudger upward until the black back casing snaps out and is dislodged on that edge of the camera.
-
-
-

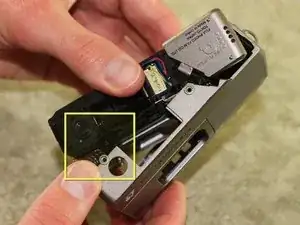

Squeeze the camera by placing a thumb on the tab marked CE.
-

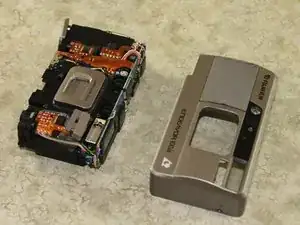

Pull the back half of the camera firmly away from the camera body.
-
-
-

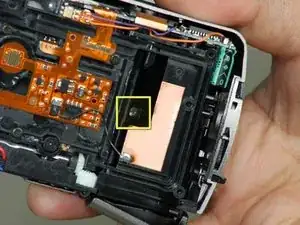

Locate and remove the 3.80mm screw inside the film compartment with the Phillips #00 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
