Disassembling GD Midea FT30-3D Bottom Base

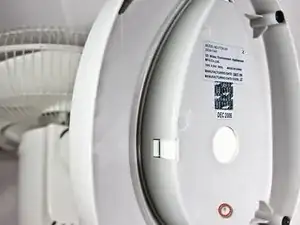

Locate and remove the 14.5 mm Phillips #1 screw on the bottom of the fan base.

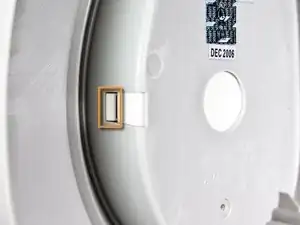

Locate the gray base support release tabs found on either side pictured in the first image.

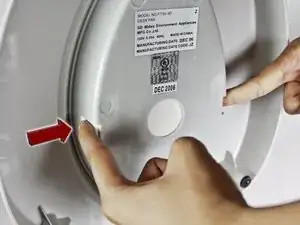

Press both release tabs in with the tip of your fingers and pull the gray base support until the tabs are cleared.

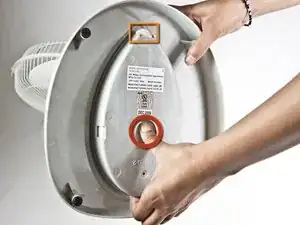

Continue removing the gray base support by pressing your thumb into the circular opening in the base and pulling with your figures on the back side.

Notice that on the internal front tip of the base there is a tab. Because of this tab the back end will pivot off at that point.

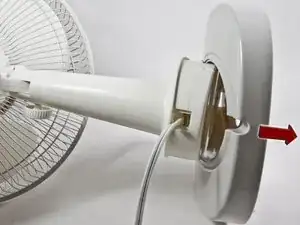

After the base has separated more it will be easy to fully remove it. Continue pulling the back edge of the gray base support, rotating it around the front tab until it comes off completely.

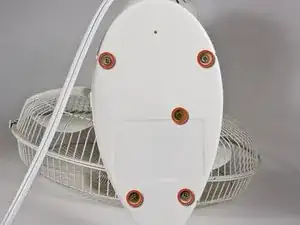

Remove the following five 14.5 mm Phillips #1 screws found on the bottom.

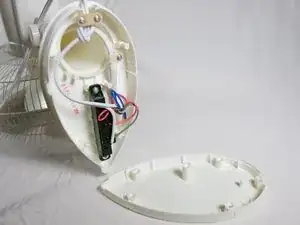

Once all five screws have been removed the base cover should fall right off with out any effort.
