Einleitung
This guide walks through the general disassembly of components that are required from installment.
Werkzeuge
-
-
Unscrew the two screws on the antenna unit using a torc-head screwdriver.
-
Gently pry open the antenna unit with your fingers.
-
-
-

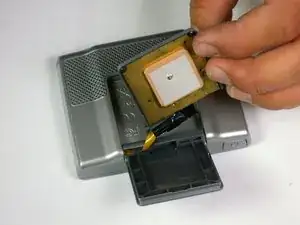

Slide out the inner casing attached to the antenna body.
-

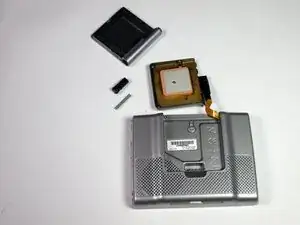

Remove the rotating joint connecting the antenna casing to the main device:
-

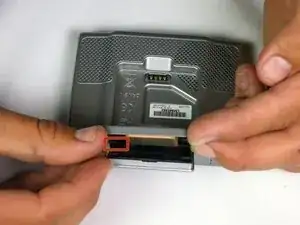

Squeeze tweezers into the shown location and compress the spring.
-
Lift out the outer casing while keeping the spring compressed.
-
-
-

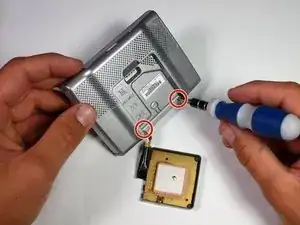

Using a torx-head screwdriver, unscrew the two revealed screws that connect the front and back of the device.
-
-
-

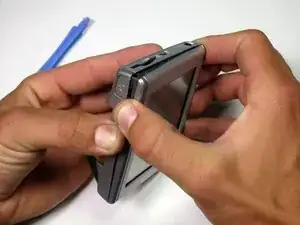

Insert the plastic opening tool into the center of the edge as shown in first picture.
-
Slide the plastic opening tool along the central gap of device, making sure that each edge is free, as shown in the second picture.
-
-
-
Using tweezers, gently lift the microphone from its resting position to fully separate the device into two parts.
-

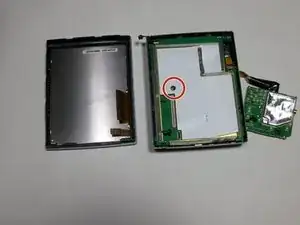

Finally, remove the screw that connects the motherboard to the back casing with a 3mm head driver.
-
To reassemble your device, follow these instructions in reverse order.
