Disassembling GravityLight Back Panel

Geschrieben von: Brian Gouldsberry
  • Kommentare: 0
Disassembling GravityLight Back Panel

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. kbSEYgCjc6yTDfaw
    kbSEYgCjc6yTDfaw
    lnHEJoYi6CICoJXT

    • Flip the GravityLight on its back and place it on a sturdy surface.

    • Unscrew the three 2cm Phillips #00 screws on the back of the GravityLight’s body.

  2. cRbvBmMQ4fVLRaug

    • Some of the internal pieces may loosen or fall out during disassembly.

    • Firmly grasp both parts of the GravityLight body and pull them apart.

  3. bvmLN1Htc5jwUv1Y

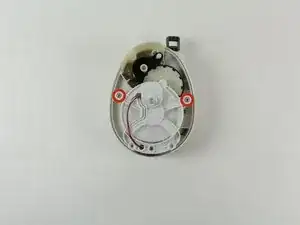

    • Place the back panel, the larger of the two pieces, on a sturdy surface with its back down.

    • Unscrew the two 2cm Phillips 00 screws on the inside of the back panel.

  4. UTYSO6ap3PiILQ6d
    UTYSO6ap3PiILQ6d
    FlYPiQFG13mTXafG
    waLYnqN1dYWcNLGr

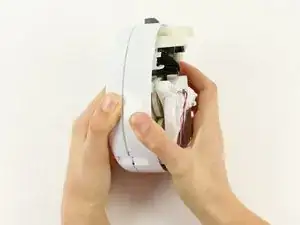

    • Some of the internal pieces may loosen or fall out during disassembly.

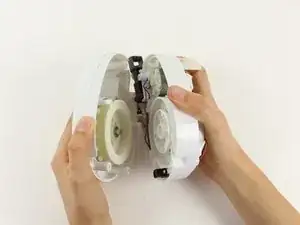

    • Firmly grasp both parts of the back panel and pull them apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
