Disassembling Home Stereo and Theater Philips MCD288

Geschrieben von: Philipp
  • Kommentare: 0
Disassembling Home Stereo and Theater Philips MCD288

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This introduction shows how to open the main set of a Philips MCD288/??. It should be the same for all /??s. The front panel might get buckled a bit.

  1. sv1fxyF5WBYcDoCL

    • remove the 4 screws on the bottem of the main set

  2. 46dP4yMPXVOPeRZC

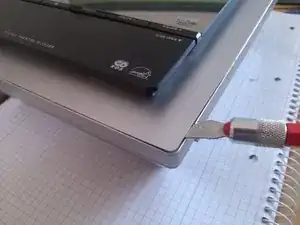

    • Lift the aluminium pane at both sides with a spudger.

  3. 6fAjnmGELmo2MCWr

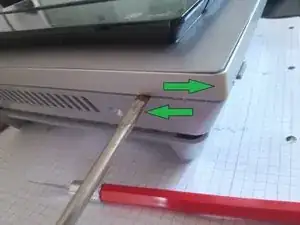

    • To lift an edge, shift the front part at that edge towards the side while bending both parts apart (picture of the inside at step 5)

    • hint: Start at the bottom, then continue with the sides according to step 4, because the bottom is only fastened by the screws of step 1, while the top has 3 extra latches (seen in step 5).

  4. ojFYEuMHgbrDHjXX
    ojFYEuMHgbrDHjXX
    1dlA3nUiQCS31BWq

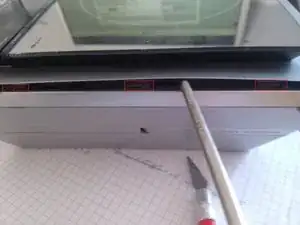

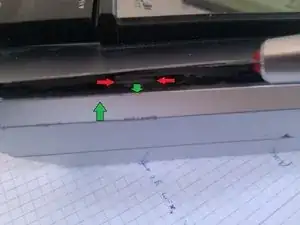

    • To detach the sides, pull a main latch towards you and keep on lifting the top part further.

    • repeat for three latches on each side.

  5. 2kErKoJL1FASirNP
    2kErKoJL1FASirNP
    cD6iLpeq61KapTbq

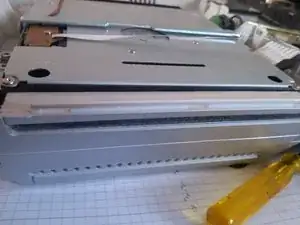

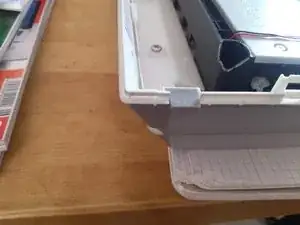

    • These pictures show the latches on each edge and on the top of the set.

Abschluss

To reassemble your device, follow these instructions in reverse order.
