Disassembling Hyperion EOS0610i DUOII Chassis

Geschrieben von: David Hoyt
  • Kommentare: 1
Disassembling Hyperion EOS0610i DUOII Chassis

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

The Hyperion EOS0610i DUOII is a multi-chemistry battery charger originating in Hong Kong with two charging channels and PC logging compatibility with an addition USB dongle sold separately.

  1. ZJJZSrCX4PDrN1Qp
    ZJJZSrCX4PDrN1Qp
    ydchlOtBhmBevHIj

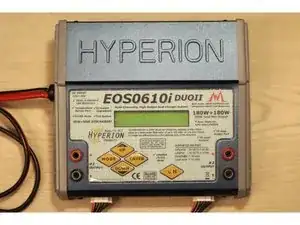

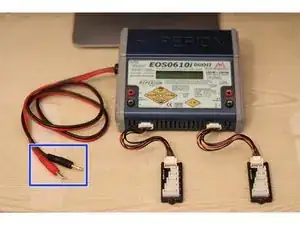

    • Disconnect the DC power banana plugs from any power source.

    • When not powered, the chargers screen will be blank.

  2. C5ZwRwne5qBSFEAM
    C5ZwRwne5qBSFEAM
    yQXTvDvEfE1mJAxw
    dlPVpQBwT2vsQ2u6

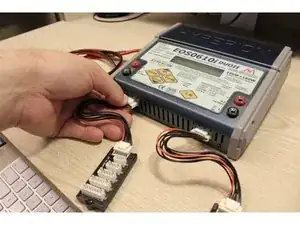

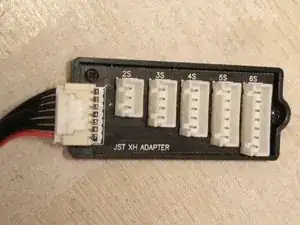

    • Press down on the tab located on the top of the white molex connector and firmly pull away from the charger body.

  3. ySKJTuIvA5DdUNop
    ySKJTuIvA5DdUNop
    FOnUuLvDZ4AhXFfO
    pV4T6weogVXGEJDd

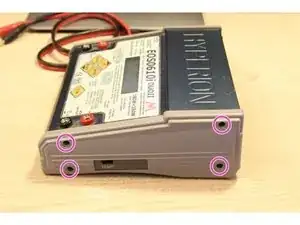

    • Remove the four screws located on the right side cover of the charger.

  4. fEywruYAInVdSSHx
    fEywruYAInVdSSHx
    r4BsnHIOHy2Tp3bH
    VKiFxsRlOcVLjpkG

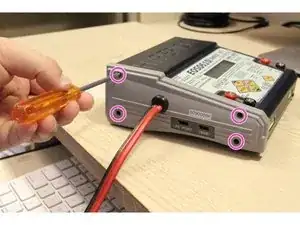

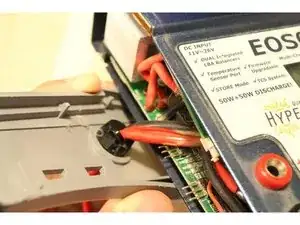

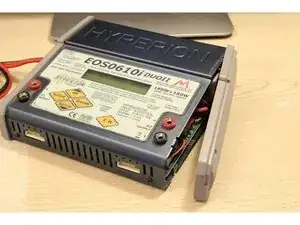

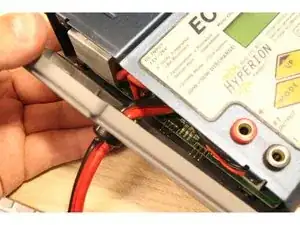

    • Remove the four screws located on the right side panel.

    • Do not pull on the panel, the DC power cables are rigidly attached to the panel by the black plastic grommet, this grommet is removed in the next step.

  5. MUok1r2XXqnUIDUD
    MUok1r2XXqnUIDUD
    3kwOCnFa2tDPmQxv
    e3RGpYoVYmSRZSDN

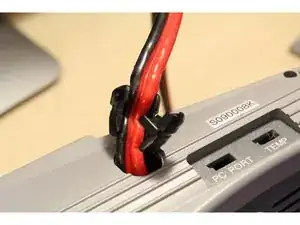

    • Locate the smaller, secondary part of the grommet.

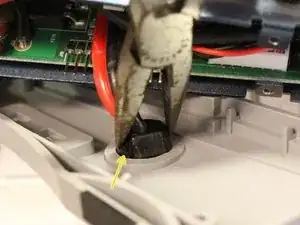

    • Using needle nose pliers, gently sqeeze on the secondary part of the grommet and the opposite side of the grommet while pushing the grommet through the hole towards the exterior side of the panel.

    • Once pushed through the hole, the grommet can be removed from the wires and set aside.

    • The smaller, secondary part of the grommet is connected to the main part of the grommet by a thin piece of plastic, ensure this piece is not severed during this process.

  6. E2VqVxElf5WQQCWE
    E2VqVxElf5WQQCWE
    RwyJTjKCKFmTNBSl
    WMTKiEIJDkVdUP51

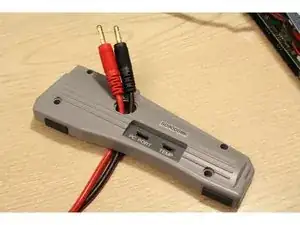

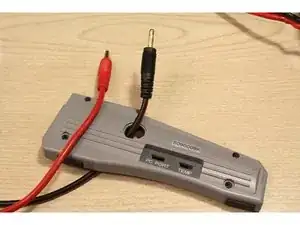

    • One by one, pass both banana connectors through the hole in the left side panel.

  7. wX5ZyCN4klNAREXs
    wX5ZyCN4klNAREXs
    5wYk4pAQZYjk1L3Y
    MUojRyhLLAIThkZr

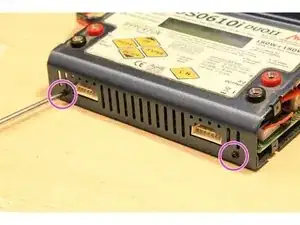

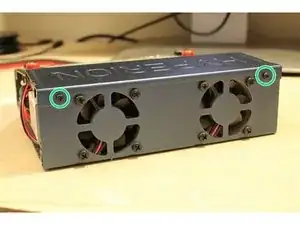

    • Remove the two screws located on the front side of the charger.

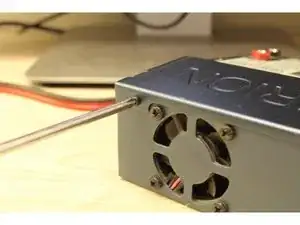

    • Remove the two screws located on the back side of the charger, above the fan screws.

  8. Uu2SVY24vEjBUsIX
    Uu2SVY24vEjBUsIX
    xWgmKFFxqewCSI14

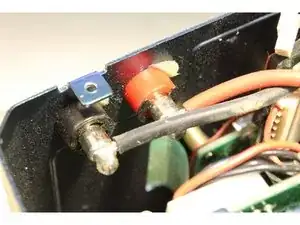

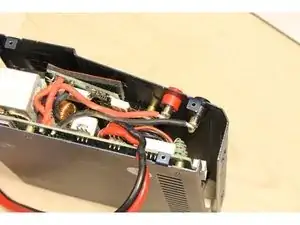

    • Desolder the two wires connected to the female banana plug ports for both channel 1 and 2 (left and ride sides of the charger).

    • Too high temperature setting will cause the plastic banana plug port covers to melt, use only as much heat as needed to flow the solder.

  9. EoONaUSMvohtn5a6
    EoONaUSMvohtn5a6
    rPQDFwrVdFt23pAQ

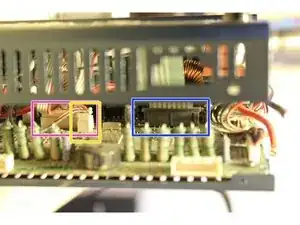

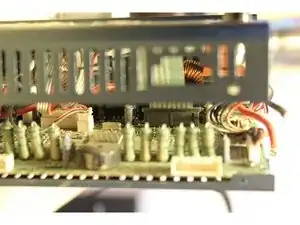

    • The top cover is still connected by three ribbon cables to the mainboard. Gently lift the top cover until you can slide your fingers or a spudger into the charger to disconnect the three molex connectors.

    • LCD Segment Display Connector

    • Backlight Power Connector

    • Front Panel Buttons Ribbon

  10. t1FLuUFEDnKeC22k
    t1FLuUFEDnKeC22k
    1Y2p4NCkgwCeDJEU
    bgd6CYsOiAFStToO

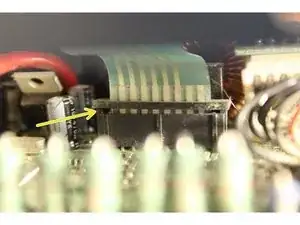

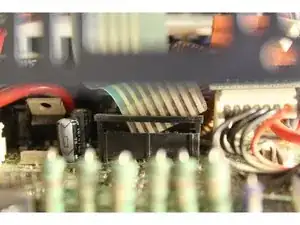

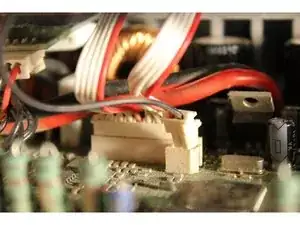

    • Use a spudger or shim to gently separate the top plastic bar from the large lower piece. Once separated, the ribon cable can be slipped out of the housing.

    • Disconnect the two white molex connectors from the board mount plugs.

  11. HLWtNBLslZsICSKf
    HLWtNBLslZsICSKf
    twNx15HWMZlmKVpU
    vybaBeh5uKReNhSI

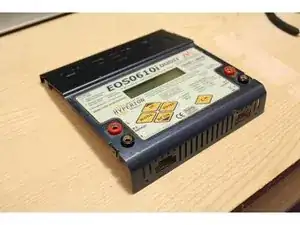

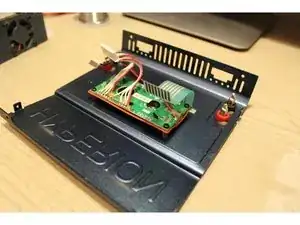

    • The top faceplate can now be separated from the lower charger assembly.

    • Be sure to separate the two parts slowly, checking for snagged wires and other hazards that could cause damage to the charger.

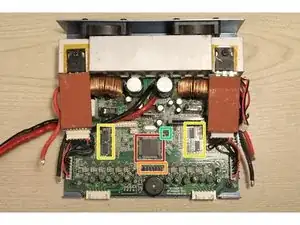

    • Inside you'll find:

    • PIC24HJ128GP310 16-bit Microcontroller

    • PIC ICSP Programming Pins (6 Pins)

    • KA324AD Quad Operational Amplifiers (4 total)

    • 24LC32A 32K I2C Serial EEPROM
