Disassembling IBM ThinkPad A30 BIOS Battery

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

Remove the ThinkPad A30 BIOS battery.

The following steps will be shown:

  • Battery removal
  • BIOS battery removal

  1. LojZOTKUVLIFLI2V
    LojZOTKUVLIFLI2V
    KFTIp3x1sSkAhvjA

    • Flip the ThinkPad over so that it is upside down.

    • Slide the highlighted tab to the left.

    • With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

  2. CgtgDx2yfuZksnly
    CgtgDx2yfuZksnly
    rsO6xApg5HambPqu
    oqBSFQj2e4yOA1rl

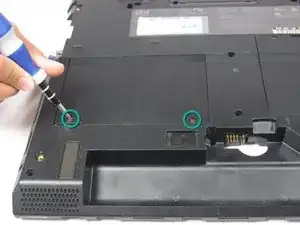

    • Remove the two 5.3mm cover screws.

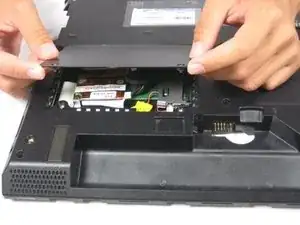

    • Gently lift the cover.

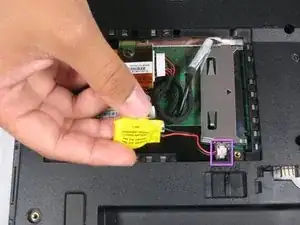

    • Take out the BIOS battery by unplugging it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
