Disassembling IBM ThinkPad A30 Modem and Ethernet Cards

Geschrieben von: Alan
  • Kommentare: 0
Disassembling IBM ThinkPad A30 Modem and Ethernet Cards

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. LojZOTKUVLIFLI2V
    LojZOTKUVLIFLI2V
    KFTIp3x1sSkAhvjA

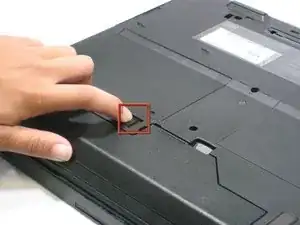

    • Flip the ThinkPad over so that it is upside down.

    • Slide the highlighted tab to the left.

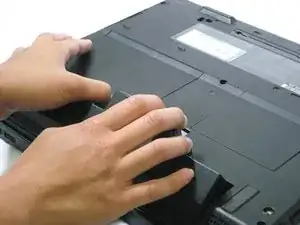

    • With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

  2. qDhTvDWbMeuTMmIu
    qDhTvDWbMeuTMmIu
    wdtd6x6JaKLSCNhg

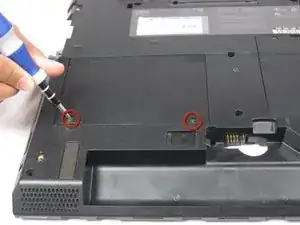

    • Remove the two 5.3mm cover screws.

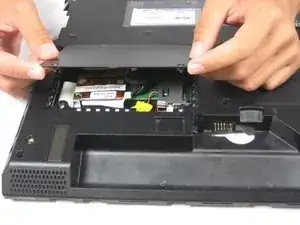

    • Gently lift the cover.

  3. fbFtqjsWjqHyTVs1

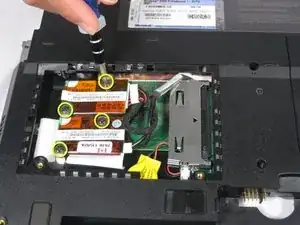

    • Remove the four 9.1mm screws attached to the ethernet and modem cards.

  4. dVTyOKT2IHpmtVTC
    dVTyOKT2IHpmtVTC
    davB5BuS6I1dtvwY
    Jvy5OGTdm3CLXwHH

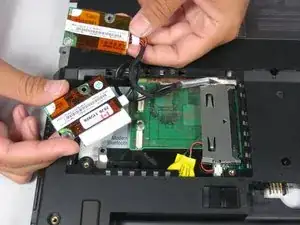

    • When lifting the cards, be careful not to rip out the cables!

    • Gently lift the modem and ethernet cards.

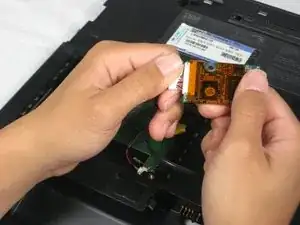

    • Remove the cables that attach the modem and ethernet cards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
