Einleitung
These instructions will demonstrate how to remove the keyboard from the KDDI Kyocera A5521K.
Werkzeuge
-
-

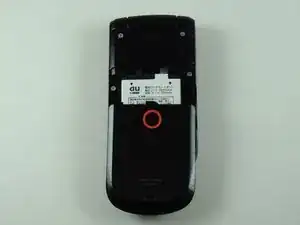

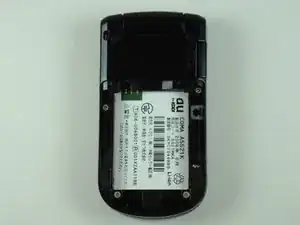

Turn the phone over to expose the battery cover.
-
Apply pressure to the back of the battery cover to slide it down.
-
The battery cover is now separate from the phone.
-
-
-

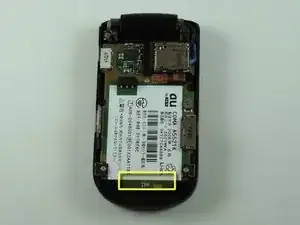

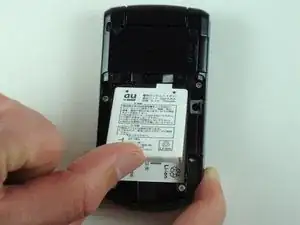

Remove the battery by pushing it up and out from the bottom.
-

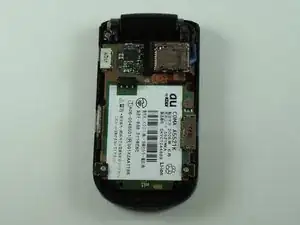

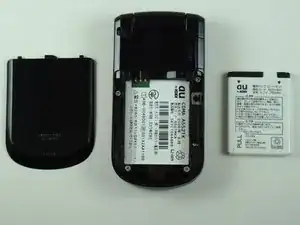

The battery, cover, and phone should now be separated.
-
-
-

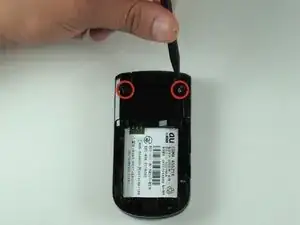

Remove the black, rubber screw caps towards the top of the back of the phone to reveal two additional screws.
-

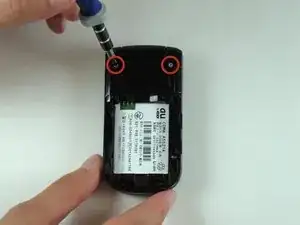

Remove the two screws with a Y0 screwdriver.
-
-
-
Rotate the phone 180 degrees.
-

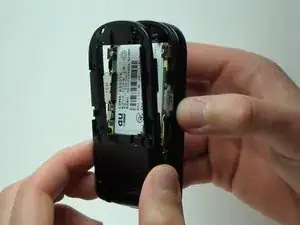

Carefully separate the back plate from the remainder of the phone.
-

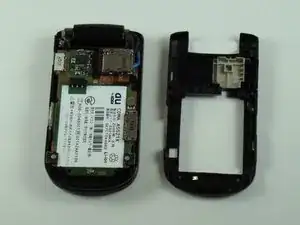

The back plate should now be detached from the rest of the phone.
-
-
-

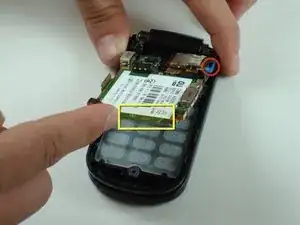

Lift up the bottom of the logic board.
-
Carefully remove the logic board from the lower half of the phone.
-
-
-

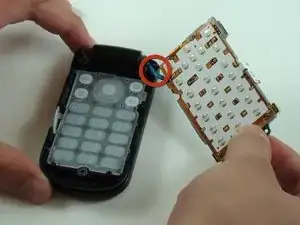

Gently lift the keyboard up with a spudger.
-

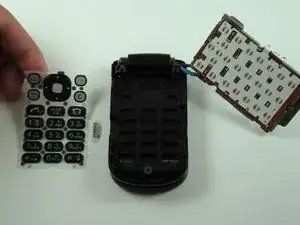

The keyboard is now separate from the remainder of the phone and can be easily removed.
-
To reassemble your device, follow these instructions in reverse order.
